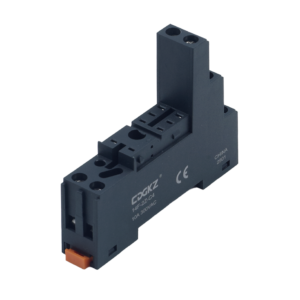

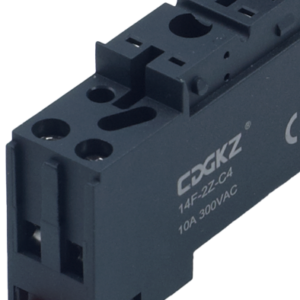

10A 300V 8PIN Relay socket 14F-2Z-C4 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 14F-2Z-C4 |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 4000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 38G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 14F-2Z-C4 relay socket delivers high dielectric strength, secure connections, and reliable operation across demanding industrial environments.
Electrical Ratings
- Rated current 10A ensures stable performance in industrial relay switching.
- Rated voltage 300V supports safe operation across control and automation systems.
- Dielectric strength 4000V/S guarantees reliable insulation under high-voltage stress.
Mechanical & Installation Features
- Screw torque 1.0Nm provides secure terminal fastening for vibration-resistant installations.
- Supports 20–14 AWG / 0.5–2.5mm² wiring for flexible external connections.
- Compact design at 38g weight ensures easy handling and panel integration.
Environmental Conditions
- Wide ambient temperature range from -40℃ to +85℃ enables use in harsh environments.
- High thermal endurance supports continuous duty under variable industrial conditions.
Physical Characteristics
- Lightweight structure (38g) improves installation efficiency without compromising durability.
- Robust socket body ensures long-term mechanical stability under repetitive relay insertions.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
14F-2Z-C4
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts

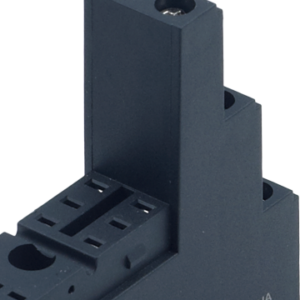

Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage capacity of the 14F-2Z-C4 relay socket?
The 14F-2Z-C4 relay socket supports a rated current of 10A and a rated voltage of 300V, making it suitable for industrial automation and control circuits requiring stable medium-load switching.
2.What is the dielectric strength of this relay socket?
The socket is designed with a high dielectric strength of 4000V/S, ensuring reliable insulation performance and enhanced safety against electrical breakdown during operation.
3. What type of external connection wires are supported?
It supports 20–14 AWG (0.5–2.5 mm²) connection wires, enabling flexible wiring choices for both light and medium-duty applications. This range ensures secure clamping force under the specified screw torque of 1.0 Nm.
4.What are the environmental operating conditions for this product?
The 14F-2Z-C4 can operate reliably in ambient temperatures from -40℃ to +85℃, making it suitable for extreme industrial environments including cold storage, outdoor systems, and high-heat control cabinets.
5. What is the product’s mechanical specification in terms of weight and durability?
The socket weighs 38g, providing a compact yet robust structure that is resistant to vibration and mechanical stress, ensuring long service life in demanding industrial applications.
6.Which relay brands are supported by the CDT08A-E model?
The socket is compatible with Siemens, Schneider, TE (Tyco Electronics), Eaton, and Weidmuller relays, providing versatility for procurement across multiple international brands.
