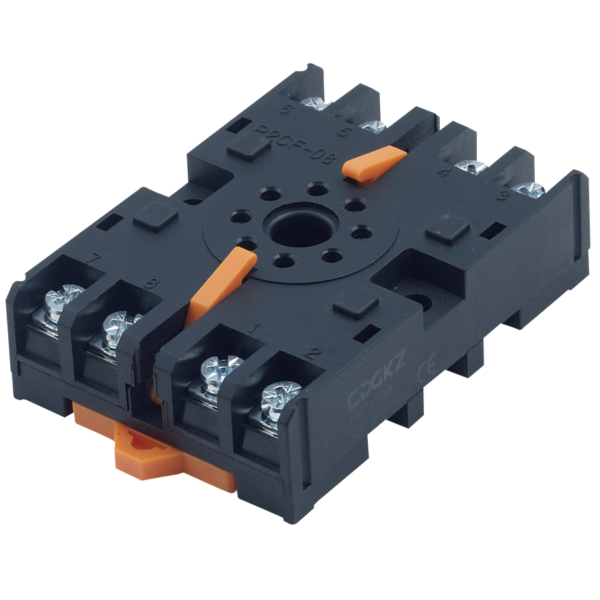

12A 300V 8PIN Relay socket P2CF-08 Manufacturer of the Industrial Control Products CDGKZ
| Product model | P2CF-08 |
| Rated current | 12A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 55G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
P2CF-08 delivers reliable electrical performance, robust mechanical design, and wide environmental adaptability for industrial relay socket applications.
Electrical Ratings
- Rated current: 12A ensures reliable handling of medium-load circuits.
- Rated voltage: 300V AC provides compatibility with industrial power systems.
- Dielectric strength: 2000V/S guarantees strong insulation and safety margin.
Mechanical & Installation Features
- Screw torque: 1.0Nm ensures secure terminal connections.
- External connection wire: supports 20–14 AWG (0.5–2.5mm²) conductors for flexible wiring.
- Compact weight: 55g allows ease of installation in control panels.
Environmental Conditions
- Operating temperature: -40℃ to +85℃, suitable for harsh industrial environments.
- Resistant to thermal cycling, ensuring long-term durability.
- Reliable operation under both low-temperature and high-humidity conditions.
Physical Characteristics
- Compact form factor for optimized panel space usage.
- Sturdy molded body provides mechanical strength and insulation reliability.
- Designed for compatibility with Siemens, Schneider, TE, Eaton, and Weidmuller relays.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
P2CF-08
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage of the P2CF-08 relay socket?
The P2CF-08 relay socket is designed for a rated current of 12A and a rated voltage of 300V, making it highly reliable for medium-power industrial control systems where stable current and voltage handling are critical.
2.How durable is the P2CF-08 under electrical stress?
The socket provides a dielectric strength of 2000V/S, ensuring excellent insulation performance and resistance to electrical breakdown. This makes it suitable for demanding environments where high insulation reliability is essential.
3. What wire sizes can be connected to the P2CF-08?
It supports external connection wires ranging from 20–14 AWG (0.5–2.5 mm²), offering flexibility for different wiring standards. This allows engineers to select wiring according to installation requirements without compromising conductivity or safety.
4.What environmental conditions can the P2CF-08 operate in?
The socket can function in an ambient temperature range of -40℃ to +85℃, ensuring dependable operation in both extreme cold and high-temperature industrial environments.
5. What is the mechanical reliability of the P2CF-08 socket?
With a screw torque rating of 1.0 Nm and a compact weight of 55g, the socket ensures secure terminal connections and vibration resistance. This enhances long-term stability, especially in automation panels and machinery.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
