CDST1.5-TW (Copy)
| Model Number | CDST1.5-TW |
| Color | Grey, Blue, other color can be customized |
| Length/Wide/Height (mm) | L60.9/H36/W4.2mm |
| Connection method | Spring Connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | |
| Cross section, solid/soft Cable | 0.08-1.5mm²/0.14-1.5mm² |
| Conductor Size | 26-15awg |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | Carton |
| Certification | CE/RoHS/CQC/ISO 9001 |
Product Details
Key Technical Features:
The RF083 is a screw-type, DIN-rail and panel-mount compatible relay socket. It offers reliable performance, ease of installation, and enhanced safety, making it an ideal choice for industrial automation and control panels.
Rated Current: Up to 15A at 250VAC, ideal for medium to high load control
Ambient Operating Temperature: -35°C to +70°C, suitable for harsh industrial environments
Withstand Voltage: Up to 2000VAC, ensuring electrical safety and reliability
Wire Entry Spacing: 7mm, optimized for ease of wiring
Screw Torque: 0.8–1.0N·m, providing secure and firm terminal connections
Weight: Approx. 35g, lightweight yet rugged in design
Product Display
Structural & Functional Advantages
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Application Scenario

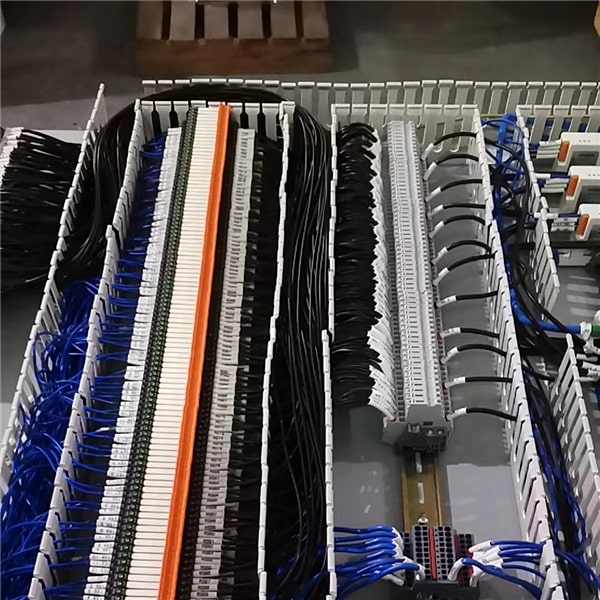

Industrial Control Systems
PLCs, motor controls, and automation equipment
Industrial Control Systems
PLCs, motor controls, and automation equipment
Industrial Control Systems
PLCs, motor controls, and automation equipment
FAQ
1. What type of relays is the RF083 compatible with?
The RF083 is designed to work with standard plug-in relays such as the 10F series, including 3-pole changeover relays (3Z type). It is also compatible with similar format relays from most major brands.
2. What is the maximum current rating?
This socket supports up to 15A at 250VAC, making it suitable for medium to heavy-duty industrial applications.
3. What wiring method is used?
The RF083 uses screw terminal connections, supporting up to 7mm external wire diameter with a torque specification of 0.8–1.0 N·m for secure and stable contact.
