10A 300V 15PIN Relay socket 18F-4Z-C5 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 18F-4Z-C5 |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2500V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 68G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |

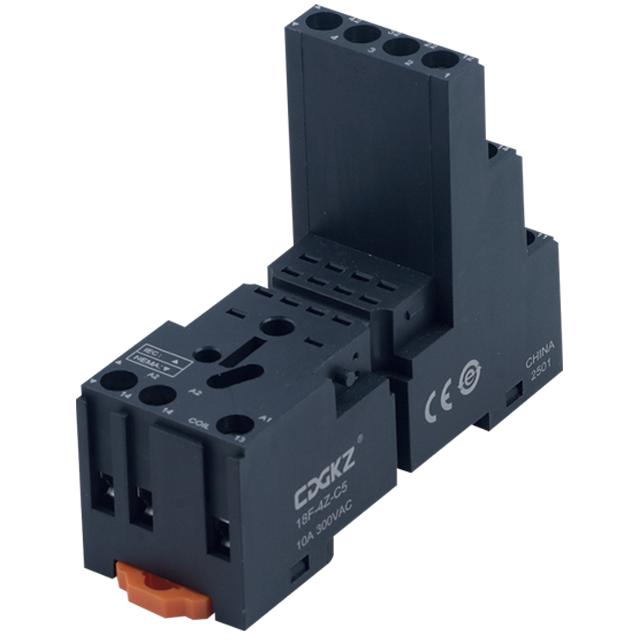

Product Details

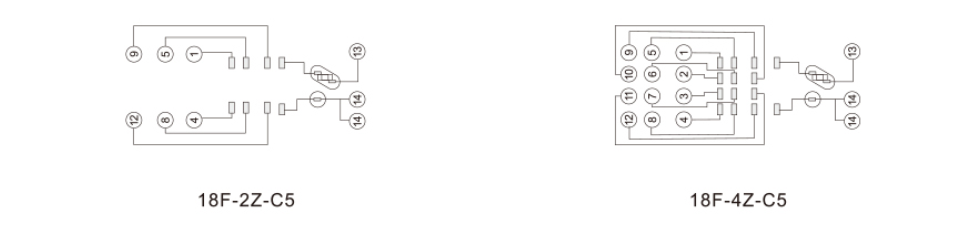

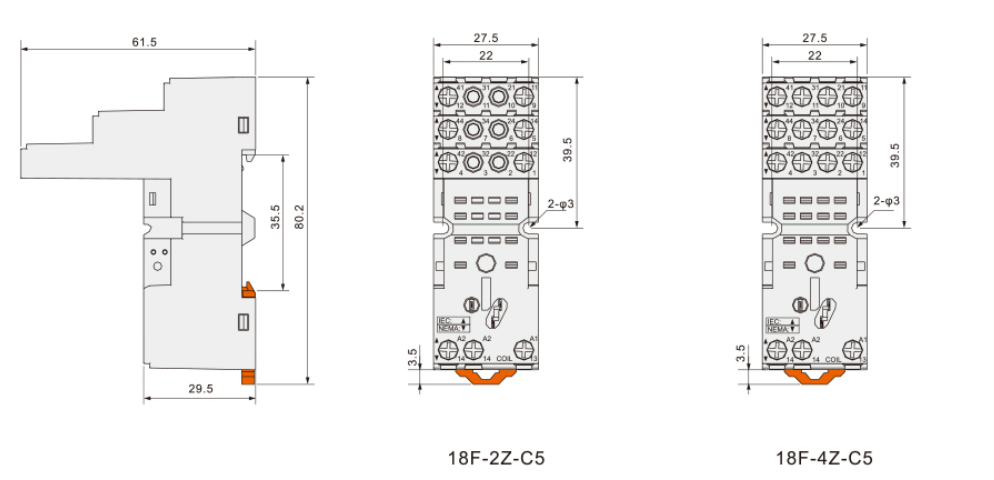

Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
Engineered for industrial reliability, 18F-4Z-C5 provides stable current handling, robust insulation, and secure installation in demanding automation systems.
Electrical Ratings
Rated current: 10A
Rated voltage: 300V
Dielectric strength: 2500V/S
Mechanical & Installation Features
Screw torque: 1.0Nm ensures secure terminal fastening
External connection wire: 20–14 AWG / 0.5–2.5mm² for versatile wiring options
Environmental Conditions
Operating temperature: -40℃ to +65℃ for reliable performance in harsh industrial environments
Physical Characteristics
Weight: 68g, compact yet robust construction
Compatible with adapter relays from Siemens, Schneider, TE, Eaton, and Weidmuller
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages

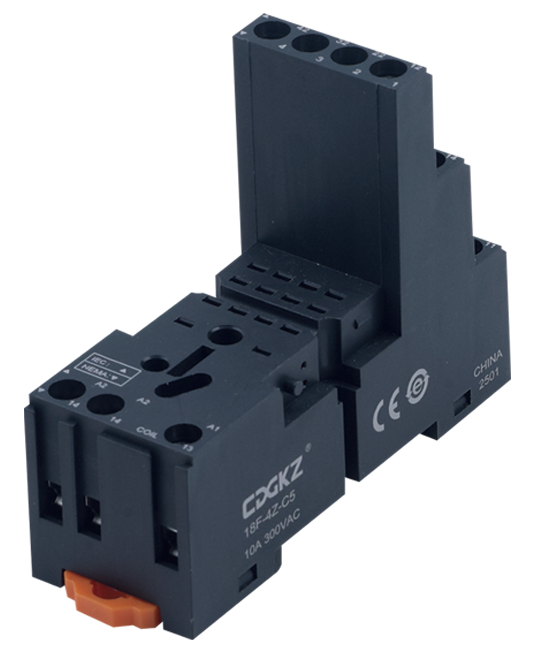

18F-4Z-C5
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

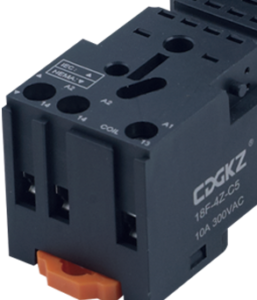

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts

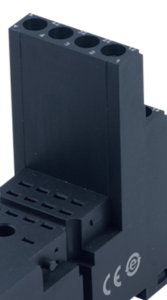

Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the electrical ratings of the 18F-4Z-C5 relay socket?
The 18F-4Z-C5 relay socket supports a rated current of 10A and a rated voltage of 300V. It is tested with a dielectric strength of 2500V/S, ensuring reliable insulation and safety under industrial operating conditions.
2.What installation and wiring features does this relay socket offer?
The socket is designed for secure connections with screw terminals rated at 1.0Nm torque. It accommodates external connection wires of 20–14 AWG (0.5–2.5mm²), making it flexible for different industrial wiring setups.
3.What environmental conditions can the 18F-4Z-C5 withstand?
This model is engineered for a wide ambient temperature range of -40℃ to +65℃, ensuring stable performance in both cold and hot industrial environments.
4.What are the mechanical and physical characteristics of this relay socket?
The socket weighs 68g, providing a robust yet compact design suitable for panel integration. Its structural strength supports industrial vibration and long-term operational durability.
5. What safety and reliability advantages does the 18F-4Z-C5 provide?
With strong dielectric strength, precise screw torque design, and industrial-grade materials, this socket ensures safe electrical performance, reduced risk of loose connections, and enhanced service life in control systems.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it is perfectly compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, the socket’s build quality surpasses that of international brands, offering excellent durability and performance.
