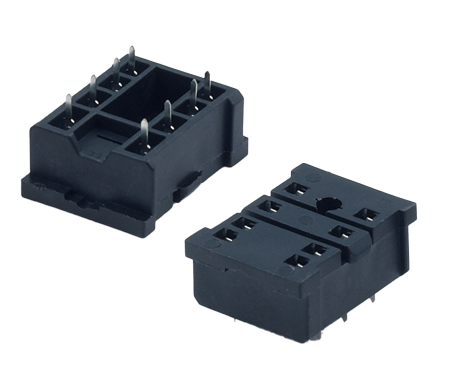

12A 300V 8PIN Relay socket 18F-2Z-A2 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 18F-2Z-A2 |
| Rated current | 12A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Ambient temperature | -40℃-+65℃ |
| Weight | 7G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
18F-2Z-A2 relay socket delivers robust electrical capacity, wide temperature adaptability, and compact, lightweight design for industrial efficiency.
Electrical Ratings
- Rated current capacity up to 12A ensures reliable power handling in industrial control systems.
- Rated voltage of 300V provides safe operation under standard industrial electrical environments.
- Dielectric strength of 2000V/S guarantees insulation integrity and resistance to electrical breakdown.
Mechanical & Installation Features
- Compact design optimized for easy integration into control panels.
- Lightweight at only 7g, allowing flexibility in dense multi-relay assemblies.
- Designed for secure fit with compatible industrial relays to maintain stable performance.
Environmental Conditions
- Wide ambient temperature range from -40℃ to +65℃ supports harsh operating conditions.
- Stable performance in both cold and high-temperature industrial environments.
- Suitable for long-term deployment without degradation under typical field conditions.
Physical Characteristics
- Ultra-lightweight body for reduced system load.
- Precisely engineered dimensions ensure compatibility with global relay standards.
- Reliable construction supports repeated installation and removal cycles.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
18F-2Z-A2
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
PCB board welding Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage capacity of the 18F-2Z-A2 relay socket?
The 18F-2Z-A2 supports a rated current of 12A and a rated voltage of 300V, ensuring stable performance in industrial control circuits.
2.What dielectric strength does this relay socket provide?
It offers a dielectric strength of 2000V/S, providing robust insulation and reliable protection against electrical breakdown.
3. What are the environmental operating conditions for this socket?
The socket is designed to operate reliably in ambient temperatures ranging from -40℃ to +65℃, suitable for harsh industrial environments.
4.What mechanical and installation advantages does the 18F-2Z-A2 provide?
With a lightweight design of 7g, the socket allows easy handling, flexible installation, and contributes to compact system layouts without compromising durability.
5. How does the 18F-2Z-A2 support procurement efficiency in industrial applications?
The socket’s standardized compatibility, robust electrical ratings, and lightweight build ensure reduced inventory complexity, simplified replacement, and long-term reliability for procurement managers.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it is fully compatible with Siemens, Schneider, TE, Weidmuller and Eaton relays, while providing socket quality that exceeds many international brands.
