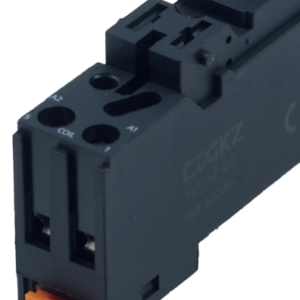

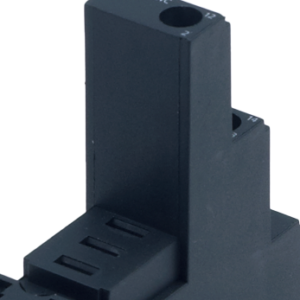

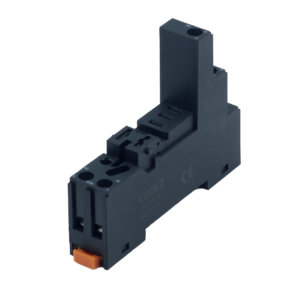

16A 300V 5PIN Relay socket 14F-1Z-C5 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 14F-1Z-C5 |
| Rated current | 16A |
| Rated voltage | 300V |
| Dielectric strength | 4000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 34G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 14F-1Z-C5 relay socket delivers high current capacity, robust insulation, and versatile installation for demanding industrial automation environments.
Electrical Ratings
- Rated current up to 16A, ensuring reliable operation for high-load applications.
- Rated voltage 300V, suitable for standard industrial power systems.
- Dielectric strength 4000V/S, providing excellent insulation and safety margin.
Mechanical & Installation Features
- Screw torque 1.0Nm ensures secure and stable terminal fastening.
- Supports external wire size 20-14 AWG / 0.5–2.5 mm², offering broad compatibility.
- Compact weight 34g allows ease of installation in dense control panels.
Environmental Conditions
- Operating temperature range from -40℃ to +85℃, enabling use in extreme environments.
- Designed for industrial reliability under wide thermal and mechanical stress.
Physical Characteristics
- Robust socket body with optimized pin structure for stable electrical contact.
- Lightweight yet durable construction, reducing installation burden without compromising strength.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
14F-1Z-C5
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage capacity of the 14F-1Z-C5 socket?
The 14F-1Z-C5 is engineered for 16A rated current and 300V rated voltage, making it suitable for heavy-duty industrial relay applications. This ensures high electrical performance and safe operation in demanding environments.
2.How strong is the dielectric insulation of this socket?
The socket provides a dielectric strength of 4000V/S, which guarantees excellent electrical isolation and protection against voltage breakdown, ensuring reliability in harsh industrial conditions.
3. What are the installation and wiring specifications?
The socket supports 20-14 AWG / 0.5-2.5 mm² external connection wires, and the screw terminals are designed with a torque rating of 1.0 Nm. This allows secure and vibration-resistant connections that maintain long-term stability.
4.What are the environmental operating limits?
It operates within a temperature range of -40℃ to +85℃, making it suitable for both low-temperature and high-temperature industrial environments. This wide range ensures durability and consistent performance.
5. What is the weight and form factor of the 14F-1Z-C5 socket?
The socket weighs only 34g, providing a compact and lightweight design while maintaining robust mechanical strength. Its compact form factor is advantageous for panel density optimization in control cabinets.
6.Which relay brands are supported by the CDT08A-E model?
The socket is compatible with Siemens, Schneider, TE (Tyco Electronics), Eaton, and Weidmuller relays, providing versatility for procurement across multiple international brands.
