Schneider RXG Relay Alternatives from China: OEM Options for Buyers
Industrial automation and control systems depend on reliable plug‑in relays and matching sockets. Schneider Electric’s RXG series is a popular line of miniature/slim interface relays, but high prices and long lead times can make them difficult to source at scale. Purchasers often wait weeks for a replacement part and pay a premium for branded components. By contrast, Chinese OEM relay manufacturers like CDGKZ produce 100 % compatible RXG relay and socket solutions, offering identical form‑factor, electrical ratings and mounting dimensions at significantly lower cost. This article examines Schneider RXG relay alternatives from China, explains how they meet UL/IEC standards, and shows why distributors, OEM builders and control‑panel manufacturers can benefit from switching.
TL;DR
Fully compatible replacements: Chinese OEMs manufacture RXG equivalents that match Schneider’s dimensions, pin layout and ratings. For example, a plug‑in RXG22BD relay rated 5 A at 250 V conforms to IEC and UL requirements, while the compatible RXZE2M114 socket carries a 10 A rating and IEC 61984/UL certification.
Cost‑effective OEM solutions: Manufacturing in China lowers total production costs by 20–40 % versus U.S. equivalents. Chinese OEMs leverage lower labor costs and economies of scale to produce relays and sockets that meet international standards but cost less.
Reliable standards and certification: High‑quality RXG substitutes are tested to IEC 61810‑1 and UL 508 for relays and IEC 61984 for sockets. Many manufacturers hold UL, CSA and CE marks, ensuring the replacements can be used in panels without voiding certifications.
Faster lead times and flexible customization: While Schneider’s relays may involve 8–12‑week lead times or more, Chinese suppliers can ship within a few weeks. They also offer OEM/ODM services—custom housing colors, labels, coil voltages, LED indicators, and private branding.
Support for distributors and control‑panel builders: Using a trusted China OEM relay manufacturer like CDGKZ helps buyers maintain supply chain resilience, reduce costs and offer customers a reliable alternative.
Why Buyers Seek Schneider RXG Relay Replacement Options from China
High cost and rigid pricing
Schneider Electric’s RXG series is a premium range of miniature interface relays. Each unit features a DPDT (or SPDT) contact arrangement and a slim form factor, making it ideal for dense control panels. However, branded relays come with high price tags. For instance, an RXG22BD interface plug‑in relay (2 C/O, 24 V DC coil) is rated for 5 A at 250 V AC or 30 V DC. When purchased through official channels, its price may exceed US$10–12 per piece (depending on region), while Chinese OEM equivalents typically cost 20–40 % less. The Chinese manufacturing advantage stems from low labor costs, large‑scale production and an integrated supply chain. The Asian Sourcing Group notes that total manufacturing costs in China are typically 20–40 % lower than in the U.S., with wages averaging 15–20 % of comparable U.S. levels.
Long lead times and supply chain disruptions
Global supply chain disruptions have left many manufacturers waiting months for critical components. A 2022 survey found that 88 % of North American manufacturers were still experiencing longer-than-usual supplier lead timesaptean.com. About 70 % regularly extended product delivery times because of material delays. Even as markets recover, lead times for semiconductors and passive components remain unstable. Panel builders and OEMs that rely on Schneider RXG relays may face 8–12‑week waits when global demand spikes or when parts are discontinued.
Chinese relay manufacturers often maintain local inventory and can deliver within 2–4 weeks. By sourcing from an OEM relay factory for Schneider RXG substitutes, buyers reduce downtime and maintain schedule commitments.
Limited customization from branded relays
Schneider’s RXG range provides standardized features such as lockable test buttons, LED indicators and removable legends, but customization is limited to a predefined set of models. OEM manufacturers in China, on the other hand, offer RXG relay OEM/ODM solutions for distributors and panel builders. Options include custom plastic colors (e.g., grey, black, clear), coil voltages (5–120 V DC/AC), integrated LED indicators, test buttons or mechanical flags, and private-label printing. Such customization is valuable for control‑panel builders who need a specific aesthetic or who want to brand relays with their company name.
Key Takeaways
Schneider RXG relays are costly and subject to long lead times. Chinese OEMs offer cost‑effective Schneider RXG relay replacement options that are 20–40 % cheaper.
Global supply chain disruptions mean buyers wait weeks or months for branded parts; Chinese suppliers shorten lead times and maintain stock.
OEM manufacturers provide customization (colors, logos, coil voltages), giving distributors and panel builders greater flexibility.
Internal link suggestion: Learn more about CDGKZ’s relay customization services.
Ensuring Technical Compatibility and Standards Compliance Matching electrical specifications
To qualify as a technical equivalent, a replacement relay must match or exceed the original’s electrical ratings. The Schneider RXG22BD data sheet specifies a 5 A at 250 V AC contact rating and a 250 V rated insulation voltage. It also lists a 5 A at 30 V DC rating and mechanical durability of 10 million cycles. The coil operating voltage is 24 V DC, and the relay features a lockable test button and LED indicator. High‑quality Chinese substitutes replicate these specifications exactly—providing the same DPDT configuration, current ratings and coil voltage—so they can directly replace the original without any wiring changes.
IEC and UL standards for relays and sockets
Compliance with international standards is essential. The RXG22BD relay is certified to UL 508 (industrial control equipment), CSA C22.2 No. 14, and IEC 61810‑1. Its matching RXZE2M114 socket meets IEC 61984 (electromechanical contact blocks and connectors) and carries UL and CSA marks. These standards cover safety requirements such as insulation distances, flame‑retardant materials, and dielectric strength.
UL notes that UL 508’s U.S. requirements for electromechanical relays are transitioning to a harmonized international standard, IEC/UL 61810‑1, to streamline global certificationul.com. Therefore, when selecting an alternative, ensure the product is tested to IEC 61810‑1/UL 508 and IEC 61984 for sockets. Without proper certification, using a substitute could void UL or CSA panel approvals.
Chinese OEM manufacturers like CDGKZ produce UL/IEC certified RXG relay replacements, with cULus marks (UL/CSA) and CE and EAC approvals. They also operate ISO 9001 quality management systems and conduct 100 % routine tests (coil resistance, dielectric strength, insulation resistance) to ensure reliability.
Maintaining UL panel listings with replacement relays
A common concern for control‑panel builders is whether using a non‑Schneider relay will invalidate the UL panel listing. According to UL guidelines, replacing a component with a UL‑listed equivalent does not void the certification as long as the replacement meets the same ratings and is used in accordance with the panel’s design. The key is to retain documentation of the replacement’s UL and CSA certifications. Quality OEM relays provide these documents, allowing panel builders to satisfy inspectors and maintain code compliance.
Key Takeaways
Verify that replacement relays and sockets conform to IEC 61810‑1, UL 508 and IEC 61984.
Ensure the replacement carries UL, CSA and CE marks; Chinese OEMs like CDGKZ provide full certification packages.
Properly certified replacements can be used without voiding UL panel listings, provided the ratings and installation methods remain the same.
Internal link suggestion: See our UL certification overview for relay sockets.
Schneider RXG vs. CDGKZ: Cost, Features and Customization Comparison
To understand the benefits of Chinese OEM replacements, let’s compare a typical Schneider RXG relay with an equivalent product from CDGKZ. The example below uses the RXG22BD relay (2 C/O, 24 V DC coil) and the RXZE2M114 socket.
Technical parity
The Schneider RXG22BD relay features a DPDT contact arrangement (2 changeover contacts) with silver alloy contacts, rated for 5 A at 250 V AC/30 V DC, and can withstand 6 kV impulse voltageiportal2.schneider-electric.com. Its mechanical durability is 10 million cycles and electrical durability is 100 k cyclesiportal2.schneider-electric.com. The matching RXZE2M114 socket uses flat pins, supports up to 10 A thermal current at 250 V and is compatible with both 2‑pole and 4‑pole RXM/RXG relays.

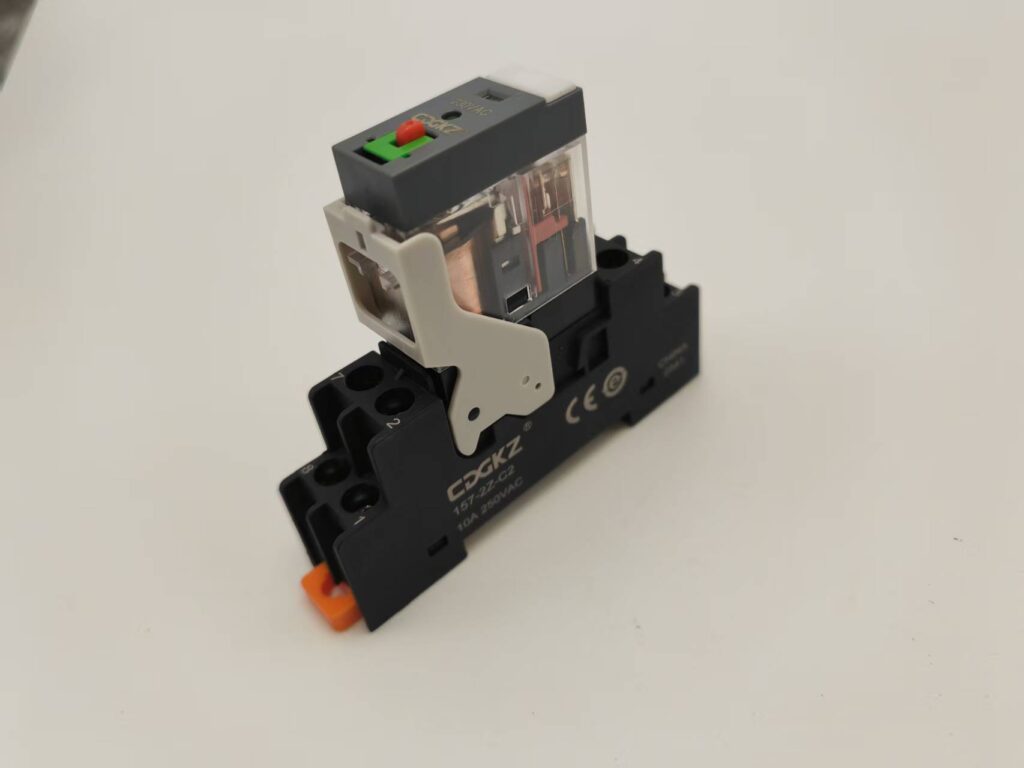

CDGKZ’s RXG replacement replicates these specifications: DPDT contacts with silver alloy or AgSnO₂ contact material, identical current and voltage ratings, 10 million mechanical cycles and 100 k electrical cycles. The socket uses the same 14‑pin flat pin layout and screw clamp terminals. Because the physical footprint and pin configuration match Schneider’s exactly, the replacement is a 100 % compatible RXG relay and socket solution; it can simply be plugged into existing panels without rewiring.
Cost and lead time advantages
While Schneider’s RXG relays command premium pricing, Chinese equivalents are cost‑effective Schneider RXG relay replacements. As noted earlier, manufacturing in China yields products that cost 20–40 % less than U.S.‑made components. For example, if a Schneider RXG22BD costs US$11, a CDGKZ equivalent may be around US$6–7 at volume, delivering significant savings across hundreds or thousands of units.
Lead times are another differentiator. Schneider orders often require 8–12 weeks or more, especially when demand surges or when parts are discontinued. CDGKZ and similar OEMs typically maintain inventory and can ship within 2–4 weeks, helping manufacturers avoid production delays.
Customization and branding
Schneider’s RXG relays come in a standard grey housing with fixed features. Chinese OEM suppliers support RXG relay OEM customization services:
Housing colors (black, transparent, custom colors) to match corporate branding.
Custom logos/labels printed or laser‑etched on the relay body and socket.
Additional options such as LED indication, mechanical flag, test button, or integrated suppression diodes.
Different coil voltages (5, 12, 24, 48, 120 V AC/DC) beyond the standard Schneider offering.
These options allow distributors to create private‑label product lines and help panel builders tailor components to unique applications.
| Parameter | Schneider RXG22BD | CDGKZ RXG Equivalent |
|---|---|---|
| Contact Configuration | DPDT (2 Changeover Contacts) | DPDT (2 Changeover Contacts), identical layout |
| Contact Material | Silver Alloy (AgNi) | Silver Alloy or AgSnO₂ (for extended endurance) |
| Rated Current & Voltage | 5 A @ 250 V AC / 30 V DC | 5 A @ 250 V AC / 30 V DC (fully equivalent) |
| Impulse Voltage | 6 kV (between coil and contacts) | 6 kV (meets IEC/EN standards) |
| Mechanical Durability | 10 million operations | 10 million operations (min.) |
| Electrical Durability | 100 k operations @ rated load | 100 k operations @ rated load (same performance) |
| Matching Socket | RXZE2M114 (flat pins, screw terminals) | 100 % compatible socket (same 14-pin layout & clamp terminals) |
| Housing Material | Standard grey PA66 body | PA66 UL94-V0 body; optional transparent or custom colors |
| Customization Options | Fixed configuration / standard housing |
• Custom housing colors (black, clear, corporate color) • Logo or label printing / laser etching • LED indicator, mechanical flag, test button optional • Coil voltages 5 V – 120 V AC/DC |
| Cost (Approx.) | ≈ US$ 11 / unit (standard pricing) | ≈ US$ 6 – 7 / unit (20–40 % lower cost) |
| Lead Time | 8 – 12 weeks (global supply chain) | 2 – 4 weeks (maintained inventory + flexible production) |
| *Technical data sources: Schneider Electric, RS Components, and CDGKZ Relay OEM Factory. | ||
Key Takeaways
CDGKZ’s RXG relays match Schneider’s electrical and mechanical specifications—5 A contact rating, 24 V DC coil voltage, 10 million mechanical cycles, and UL/IEC certification
Cost savings of 20–40 % are achievable by sourcing from a China relay supplier for RXG relay replacement.
OEM suppliers provide customization (colors, branding, coil voltage) that Schneider does not offer.
Internal link suggestion: Explore relay socket customization options.
Selecting a Reliable Chinese OEM Relay Manufacturer for RXG Series
Purchasing from any manufacturer requires due diligence. To ensure your China OEM relay solutions for control panels are trustworthy, evaluate suppliers on the following factors:
Certifications and audits
Reputable manufacturers will hold UL, CSA, CE and EAC certifications for their RXG relays and sockets. They should also comply with ISO 9001 quality management. Request copies of certificates and verify them via UL’s Product iQ database. Inspect whether the factory has been audited by major clients.
Engineering expertise and tooling
A reliable miniature slim relay OEM factory in China should have a dedicated engineering team capable of designing and optimizing molds and assemblies. Look for capabilities in finite element analysis, prototyping, and customization. Engineers who have previously worked with global relay brands bring valuable knowledge.
Material quality and production processes
Verify that the relays use high‑grade materials: flame‑retardant polyamides (PA66 or PBT) with UL 94‑V0 rating for housings, and silver alloy contacts. The RXG relay socket cross reference table should show the same copper alloy pin plating and screw clamp terminals as the original. Ask if materials are UL recognized.
Factory processes should include automated assembly lines, 100 % testing (coil resistance, dielectric strength, insulation resistance) and ageing tests to screen out early failures. Facilities that perform mechanical lifespan testing (operating the relay for 100 k cycles) and environmental testing (heat/cold, vibration) ensure consistent quality.
Communication, logistics and after‑sales support
Choose a supplier with English‑speaking sales and technical staff, experience in exporting to your region, and clear shipping policies. They should offer flexible order quantities (small and large), maintain inventory, and provide prompt responses. After‑sales support is equally important: look for a warranty of at least one year and a willingness to replace faulty units. A partner like CDGKZ can assist with integration questions and provide free samples for evaluation.
Key Takeaways
Confirm UL/IEC/CSA certifications and ISO 9001 quality management when choosing an OEM relay factory for Schneider RXG substitutes.
Evaluate engineering capability, materials and testing procedures to ensure reliability.
Good communication and after‑sales support are critical for a successful partnership.
Internal link suggestion: Tips for evaluating OEM relay suppliers.
FAQ
Is it safe to replace Schneider RXG relays and sockets with Chinese alternatives like CDGKZ?
Yes. High‑quality RXG replacements from China are designed to be 100 % compatible with Schneider’s relays and sockets. They match the same mechanical dimensions and electrical ratings (e.g., 5 A at 250 V AC, 10 million mechanical cycles) and are tested to IEC 61810‑1, UL 508 and IEC 61984. Provided you purchase from a reputable supplier with UL/CSA certification, it is safe to swap them without modifying your panel.
Will using a Chinese OEM relay void my UL certification or warranty?
No—provided the replacement is UL‑listed or recognized and matches the original ratings. UL allows substitution of components with UL‑listed equivalents; using a certified replacement does not void the UL/CSA panel approval. Always retain certification documentation for inspection.
What advantages do OEM/ODM solutions offer over buying Schneider-branded relays?
OEM/ODM solutions deliver significant cost savings (20–40 % lower unit priceasiansourcinggroup.com), flexibility (custom colors, logos, coil voltages) and shorter lead times (2–4 weeks vs. 8–12 weeks). They still meet UL/IEC standards and provide reliable performance. This combination of savings, customization and compliance makes Chinese RXG alternatives attractive for distributors and panel builders.
Conclusion & Call to Action
Switching to Schneider RXG relay alternatives from China can be a game‑changer for industrial automation and control‑panel builders. OEM manufacturers such as CDGKZ produce relays and sockets that are 100 % form‑fit‑function equivalents to Schneider’s RXG series, matching the 5 A contact rating and IEC/UL certifications. Thanks to the lower manufacturing costs in China (20–40 % less than U.S. equivalents) and robust supply chains, these alternatives offer significant cost savings and shorter lead times. They also support OEM customization—colors, coil voltages, branding—that allows distributors and panel builders to differentiate their products.
By partnering with a reliable China relay manufacturer for RXG series replacements, you can maintain panel certification, reduce procurement risk and provide customers with dependable solutions. Whether you need a RXG relay compatible with the RXZE2M114 socket, a miniature slim relay OEM factory or OEM relay factory for Schneider RXG substitutes, consider CDGKZ as your trusted partner.
Ready to save costs and secure reliable relay supply? Contact CDGKZ today to request free samples or a quote. Our engineers will help you cross‑reference Schneider part numbers, provide a RXG relay socket cross reference table, and customize relays and sockets to meet your exact requirements. Empower your business with certified, cost‑effective relays—get in touch now!
