Relay Socket Inspection Tips & Preventive Maintenance Guide
Poorly maintained relay sockets can become weak links in your electrical system, causing unexpected downtime, intermittent faults, or even safety hazards. Dust accumulation, contact corrosion, and mechanical wear are common culprits that degrade socket performance over time, often overlooked until a critical failure leads to costly repairs. In this guide, we provide relay socket inspection tips, socket pin cleaning methods, and other preventive maintenance strategies to help you identify socket contact wear signs, extend component lifespan, and ensure reliable operation.

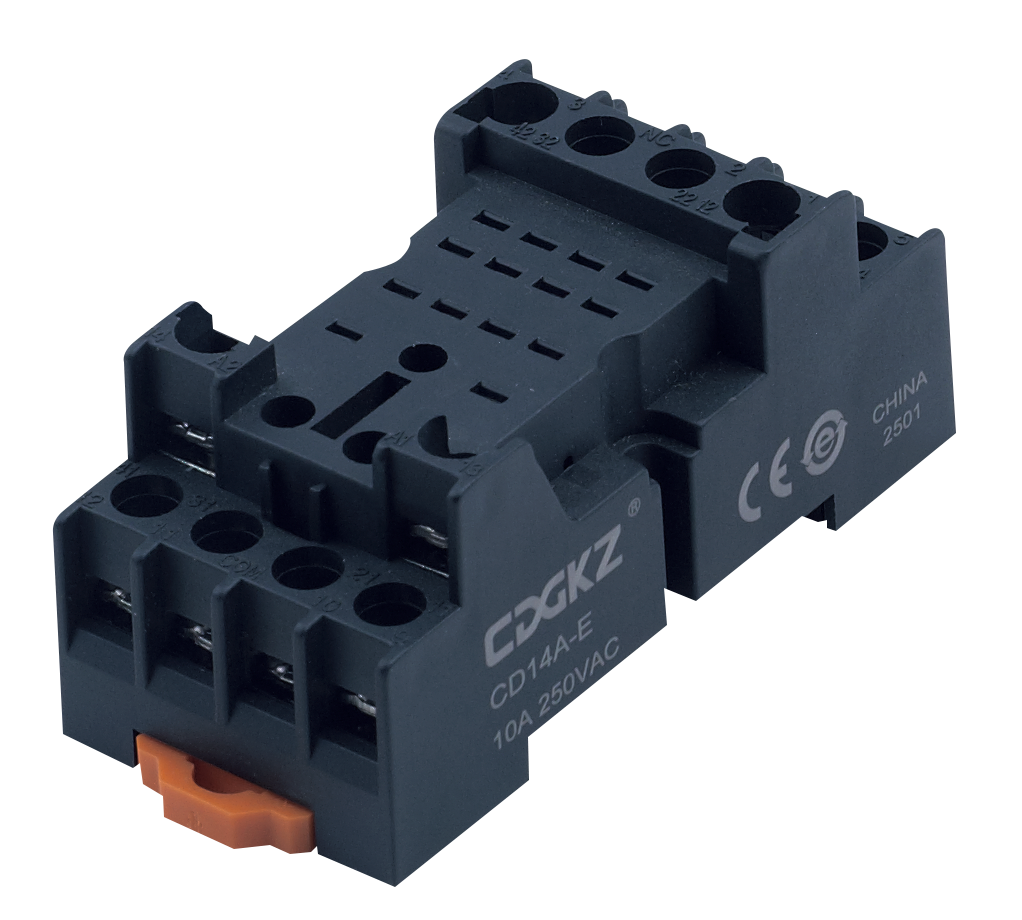

Regular Inspection and Preventive Maintenance
Implementing a routine inspection schedule is at the heart of preventive maintenance for relay sockets. Regular checks can catch early signs of trouble before they escalate into failures. Key relay socket inspection tips include:
Visual Inspection: Power down equipment and look closely at each relay socket for discoloration, burn marks, or socket contact wear signs. Heat-induced browning or melted plastic indicates overheating; carbon residue or pitting on contacts suggests arcing or corrosion. These relay socket wear-out indicators signal that the socket may be nearing end-of-life.
Secure Connections: Verify that all terminal screws or clamps are tight. Loose wiring can cause high resistance and heat buildup. Use a calibrated torque screwdriver to tighten terminals to the manufacturer’s recommended socket tightening torque values (often around 0.5–1.0 N·m for many sockets) to avoid both under- and over-tightening.
Electrical Testing: Perform a periodic socket resistance test by measuring the contact resistance or voltage drop across the socket’s connections. An increasing resistance over time can indicate contact material degradation or looseness. Also, energize the relay coil and check that the circuit functions correctly through the socket. Unusual voltage drops, flickering outputs, or warm terminals during operation are red flags.
Function Check: If the socket has a built-in diagnostic LED, confirm it illuminates when the relay is activated. As part of routine tests, you might also vibration-test relay socket assemblies (simulating operational vibrations) to ensure they remain securely seated under real conditions. In critical applications, some facilities even do periodic thermal cycle testing – cycling temperatures to verify socket reliability under extreme cold and heat swings.
By adhering to a regular inspection regimen, you can catch small issues (like a slightly loose screw or minor corrosion) before they cause downtime. Consistent preventive maintenance of relay sockets not only improves safety but also maximizes uptime by addressing problems early. Learn more about advanced relay socket diagnostics.
Cleaning Methods and Corrosion Prevention for Socket Pins
Dirty or corroded socket pins are a common source of relay problems. Over time, dust, grease, and oxidation build up on contact surfaces, increasing resistance and causing unreliable connections. Proper socket pin cleaning methods and anti-corrosion practices are essential for maintaining performance.
Start by disconnecting power to the equipment for safety. Remove the relay from its socket and inspect the metal pins and the socket contacts. If you see any green or white crusty deposits (oxidation) or dark tarnish, it’s time for a thorough cleaning. Use a specialized electrical contact cleaner spray to dissolve dirt and oxides – contact cleaners are designed to remove contamination without leaving residue
. Gently brush the pins and socket receptacles with a soft nylon brush or pencil eraser. Avoid abrasive materials that could scratch the contact plating; if abrasion is necessary for heavy corrosion, use ultra-fine sandpaper very sparingly and clean out any particles afterward.
After cleaning, ensure everything is completely dry (allow solvents to evaporate). For added protection, apply a thin coat of dielectric grease on the relay pins or socket contacts. A quality dielectric grease helps seal out moisture and air, preventing future oxidation of the metal surfaces. This simple step can prevent further corrosion and maintain low contact resistance over time. Just be sure to use grease sparingly and only on the metal parts – keep it off plastic components.
Environmental control is another aspect of preventing socket corrosion. Keep relay cabinets closed to limit dust, and if the environment is humid or chemically harsh, consider sockets with corrosion-resistant plating (e.g. gold or tin alloy) on contacts. During routine maintenance, also check relay socket storage conditions for any spare or unused sockets in inventory – store them in a dry, temperature-controlled area with caps or packaging to protect contacts. Preventing moisture ingress and condensation in both stored and installed sockets will greatly slow down corrosion and contact material degradation. By consistently cleaning and protecting the contacts, you ensure each relay connection remains solid and conductive. Learn more about PCB-level socket parameters.
Identifying Wear and Deciding on Replacement
Even with good maintenance, relay sockets won’t last forever. It’s crucial to recognize when a socket has deteriorated enough that replacing it is safer than continuing to use it. Here we’ll cover common socket contact wear signs and provide a brief relay socket replacement guide, including considerations of socket reuse vs. replacement.
Signs of Wear or Damage: When inspecting, look for any relay socket wear-out indicators that suggest the unit is near failure. These include cracks or chips in the socket’s plastic housing (often from heat or UV exposure), loosened metal contacts that no longer grip the relay’s pins firmly, or visible corrosion that persists despite cleaning. Another sign is excessive heating: if a socket feels hot to the touch during operation (or shows melted spots), its internal contacts may be resistive or damaged. Similarly, intermittent relay operation, where the relay sometimes fails to energize or the circuit flickers, can point to a worn socket that can’t maintain solid electrical contact.
If you encounter these warning signs, plan to replace the socket promptly. Generally, if a relay socket shows signs of wear, damage, or malfunction, it should be replaced promptly to ensure continued reliability.
Continuing to use a compromised socket risks unplanned downtime or damage to surrounding equipment.
Reuse vs. Replacement: Technicians might wonder about socket reuse vs. replacement – for instance, if a socket is only slightly tarnished or a bit loose, can it be fixed or reused? Minor issues like surface oxidation can often be remedied with cleaning, and slightly loose contacts can sometimes be tightened (for example, by bending a contact clip gently back into shape). However, critical connection points should never be left marginal. Considering the low cost of most relay sockets relative to the equipment they protect, replacement is usually the best course once any significant wear is observed. Reusing a questionable socket to save a few dollars isn’t worth the risk of a major failure later.
When replacement is needed, follow a safe procedure. Here’s a quick relay socket replacement guide:
Power Off and Isolate: Always de-energize the circuit and verify no current is present. Lock out power if necessary to prevent accidental reactivation.
Label Wires: Mark or photograph the wiring to the old socket. This ensures you reconnect the new socket correctly to all coil and contact terminals.
Remove the Old Socket: Loosen the terminal screws and gently disconnect all wires. Unsnap or unscrew the socket from its mounting (DIN rail, panel, or PCB). Have a container for any mounting screws or clips.
Inspect and Prepare: Check the wiring ends for any signs of burning or damage; trim and re-strip wires if necessary to expose clean conductor. If the relay uses any add-on modules (like a surge suppression module or retaining clip), transfer or inspect those as well. Also confirm the replacement socket matches in pin layout and ratings.
Install the New Socket: Mount it securely (snap onto rail or screw it down). Insert each wire into the correct terminal of the new socket, matching your labels or photos. Tighten all terminals firmly to the specified socket tightening torque values (e.g. use ~0.8 N·m if recommended) to ensure a solid connection without damaging the screw threads.
Test and Commission: Plug the relay into the new socket, making sure it seats completely. Restore power and test the relay’s function in the circuit. Observe the first few operations closely – the relay should energize smoothly, and the new socket should remain cool with no abnormal sounds. Finally, attach any retaining clips and, if applicable, verify that any diagnostic LED on the socket illuminates correctly.
Following these steps will ensure a safe and effective emergency relay socket changeover when a quick swap is needed. It’s wise to keep a few spare identical sockets on hand for critical systems, so you can perform a rapid changeover if a socket fails unexpectedly. By knowing the relay socket replacement guide and watching for wear signs, you’ll minimize downtime and maintain system integrity. Learn more about relay socket replacement procedures.
Troubleshooting Common Relay Socket Issues
Even a well-maintained socket can encounter issues during operation. Quick diagnosis and troubleshooting can pinpoint whether a problem lies with the relay, the socket, or elsewhere in the circuit. Here are some common relay socket issues and how to address them:
Diagnostic LED Not Lighting: Many modern sockets have a small built-in LED that glows when the relay coil is energized (often used for diagnostic purposes). If your relay should be on but the LED is off, first verify the coil is actually receiving the correct voltage. If the coil has power but the LED remains dark, the LED itself could be burned out – a minor issue, but it can impede troubleshooting. In that case, test the relay function with a multimeter or by feel/sound (a clicking relay) to ensure the coil is activating. Replacing the socket’s LED module (if possible) or the entire socket might be necessary to restore this diagnostic feature. In general, diagnostic LED socket troubleshooting starts with confirming coil voltage, then the LED component.
Intermittent Relay Operation: If a relay chatters or fails to switch reliably, the socket may be at fault. Check for mechanical looseness – is the relay firmly seated in the socket? Vibration or accidental knocks can loosen it. Also inspect the socket for any debris or corrosion that could intermittently insulate the contacts. Performing a quick coil suppression capacitor check is useful as well: many relay sockets (or the relays themselves) include a coil suppression capacitor or RC snubber across the coil to damp voltage spikes. If that capacitor has failed open, it won’t usually stop operation, but if it failed short or significantly leaky, it could affect coil activation or cause a blown fuse. Signs of a bad suppression capacitor include burnt smells or visible damage on a plugin module. Replace the suppressor module if suspected faulty, and see if the relay’s operation stabilizes.
Burnt or Melted Sockets: A more obvious issue is finding a socket with a burnt smell, charred contacts, or melted plastic around a pin. This often results from a severe over-current or a loose connection that generated intense heat. In such cases, immediately remove power and replace the socket – repair isn’t feasible for burnt contacts. Investigate the cause as well: Was the relay switching a load beyond its or the socket’s rating? Was there a surge or short circuit? Or simply a long-term loosening that finally overheated? Address the root cause to prevent repeat failures.
High Contact Resistance: If routine measurements show that a previously low-resistance connection now reads high (for example, a closed relay circuit through the socket shows a significant voltage drop under load), the socket contacts might be oxidized or worn. Try cleaning as described earlier, but if resistance remains high, it indicates internal contact material degradation – replacement is the sure fix. Continuing to run high current through a resistive connection will generate heat and can lead to that burn-out scenario. Regular periodic socket resistance tests can catch this early.
By systematically checking these factors, you can swiftly zero in on socket-related issues. Often, simply reseating a relay or tightening a screw resolves an intermittent fault. In other cases, a module replacement (like the LED or suppressor) or a socket swap is needed. Having a troubleshooting checklist ensures you don’t overlook common culprits. Remember that a relay socket is part of a larger system: sometimes what appears to be a socket problem (like chattering) could originate from the relay coil control circuit or supply voltage fluctuations. Thus, always consider the entire context when diagnosing. Explore our relay socket troubleshooting guide.
Ensuring Long-Term Reliability Under Stress
Relay sockets in industrial and critical applications must endure various stresses throughout their service life. Mechanical vibration, temperature fluctuations, and electrical load cycling all test the durability of socket connections. To guarantee long-term reliability, it’s important to address these factors in both the selection and maintenance of sockets.
Vibration and Mechanical Stability: In high-vibration environments (such as on machinery, vehicles, or heavy equipment), a relay can literally vibrate out of its socket if not securely retained. Always use the recommended retaining clips or spring hold-downs to lock the relay in place on its socket. Additionally, regularly vibration-test relay socket installations as part of maintenance – for instance, during equipment downtime, manually or mechanically agitate the panel and observe if any relays wobble or lose contact. A well-designed socket and clip should keep the relay firmly engaged. If your application involves constant vibration, consider sockets rated or advertised for such conditions (some are specifically built for shock and vibration resistance). Over time, vibration can also loosen terminal screws, so include a socket re-torque procedure in your maintenance plan: check and tighten terminal screws periodically (e.g. every 6 months or as recommended) to the proper torque to counteract any loosening.
Thermal Cycling: Temperature swings can cause materials to expand and contract. Over many cycles, this thermal stress can loosen connections and contribute to metal fatigue. Thermal cycle socket reliability is often evaluated by manufacturers via laboratory tests that repeatedly heat and cool the socket assembly, simulating years of service. Users can take a cue from this by ensuring their sockets are rated for the full temperature range of the application. For example, if a control panel experiences freezing winters and hot summers, choose relay sockets with high-quality insulating materials that won’t crack or deform, and contacts that maintain spring tension across temperatures. If feasible, conduct your own thermal cycle tests when qualifying new socket models – verify that after a series of heat/cool cycles, all connections remain tight and the relay can be removed and re-inserted smoothly. This helps ensure socket reliability under real-world climate conditions.
Contact Material and Electrical Loads: The contact interface between relay pin and socket receptor is typically a plated metal (common materials include tin, nickel, or silver plating over a copper alloy base). High currents, frequent switching, or corrosive atmospheres can degrade these contact surfaces over time. Arcing when the relay switches a load can cause micro-pitting on the relay pins and transfer material onto the socket contacts. Eventually, this contact material degradation increases resistance and can lead to failure. To mitigate this, use sockets appropriate for the relay’s load – for instance, if switching higher currents, a socket with silver-plated contacts might handle arcing better, whereas gold-plated contacts are excellent for low-current signal relays to prevent oxidation. If you notice excessive wear on contacts, it might also indicate the relay is near its end-of-life (contacts nearing their rated number of operations) and replacing the relay along with the socket is prudent.
Extending Socket Lifetime: While stress and aging are inevitable, their effects can be minimized. As mentioned, periodic maintenance (cleaning, tightening, testing) goes a long way. Additionally, controlling the environment—keeping dust out, minimizing vibration via damping mounts, and avoiding overloading the relay/socket—will all contribute to relay socket lifetime extension. In general, a well-designed and properly maintained relay socket can last for many years. Factors like voltage spikes, extreme temperatures, vibration, moisture, and corrosive elements will affect lifespanqianji-relay.com, so address each of these in your reliability program. For example, if surges are a concern, use surge protectors or RC snubbers (either built into the socket or external) to buffer the socket from electrical stress. If moisture is present, consider enclosures with better seals or even conformal coating on circuit boards that hold sockets. By proactively managing these stress factors, you can often achieve a socket service life at the higher end of the “several years to decades” range that manufacturers suggest.
Finally, always keep records of maintenance and replacements. Track how long sockets are in service and under what conditions. This data helps predict relay socket lifetime expectancy in your specific application and informs when to do planned replacements. Some organizations choose to replace relay sockets on a fixed schedule (perhaps every few years) as cheap insurance against failure, especially in critical systems. Others rely on condition monitoring and replace only when needed. Whichever strategy, the goal is to avoid unexpected outages by tending to the socket’s reliability needs throughout its life. Discover more about extending relay socket service life.
Conclusion
Reliable electrical systems depend on the smallest components, and relay sockets are no exception. By following the inspection tips, cleaning practices, and maintenance routines outlined above, you can achieve significant relay socket lifetime extension and reduce the risk of unplanned downtime. Remember that preventive maintenance – from tightening connections to replacing a worn socket in time – is far easier and cheaper than dealing with emergency failures. Ensure that your team stays proactive with relay socket care, and consider partnering with a trusted supplier for quality sockets and accessories that stand up to your reliability requirements.
