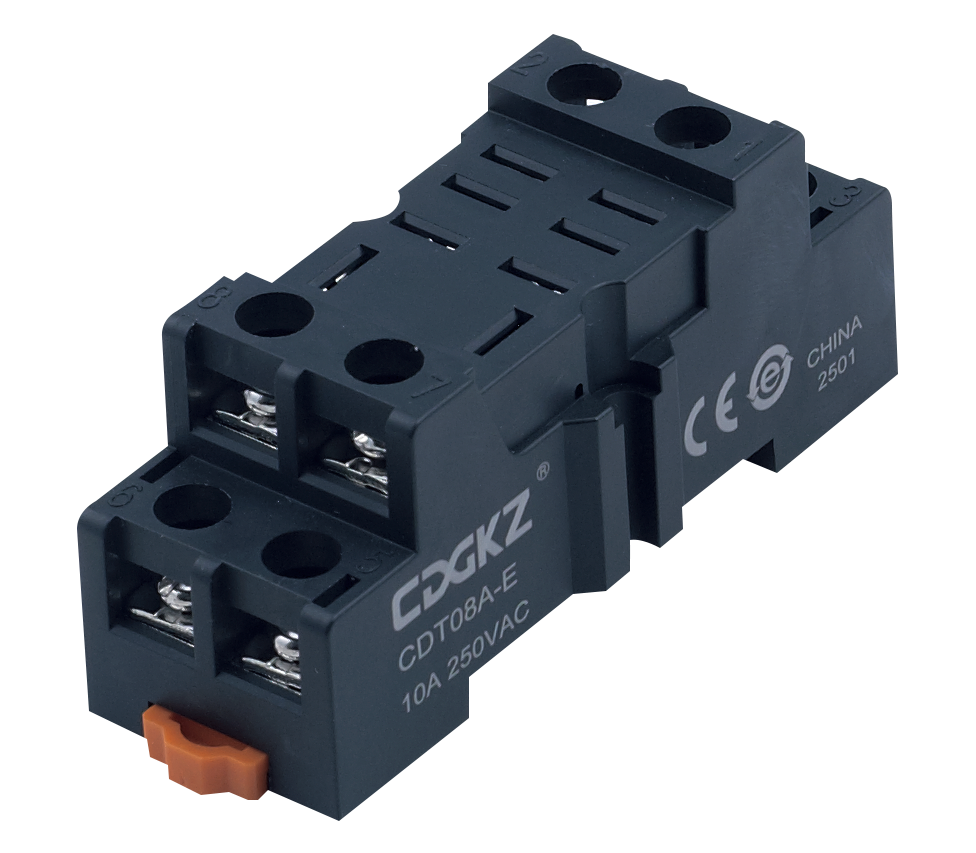

10A 300V 8PIN Relay socket CDT08A-E Manufacturer of the Industrial Control Products CDGKZ
| Product model | CDT08A-E |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 43G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details

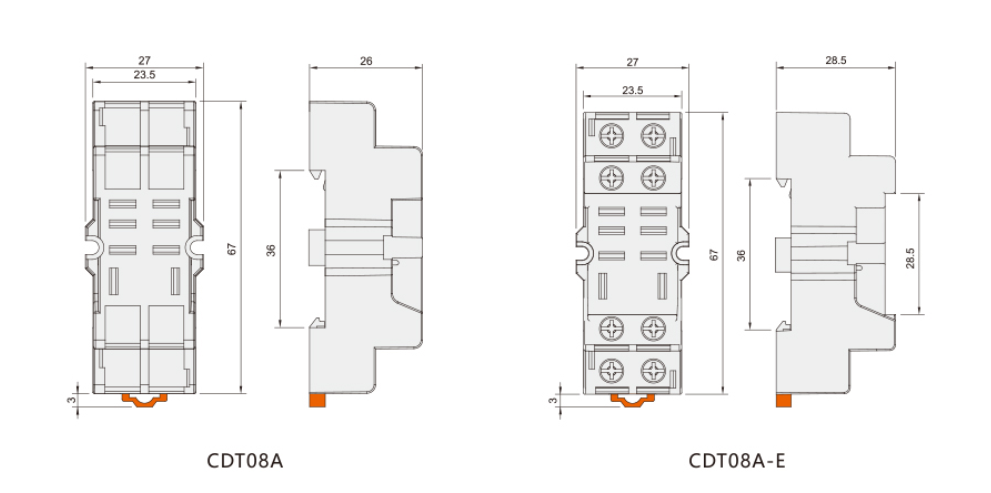

Outline dimensions/Mount dimensions(mm)

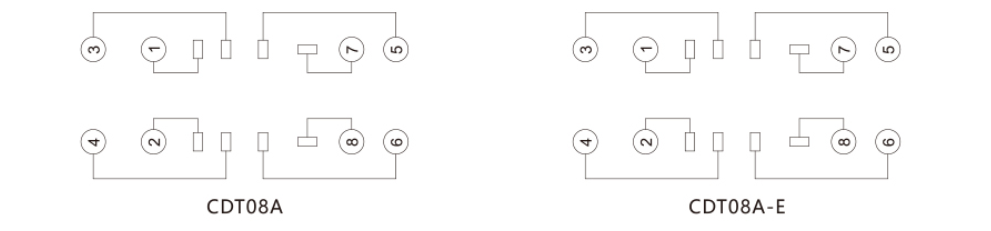

Performance Parameters
Key Technical Features:
The CDT08A-E relay socket combines robust electrical insulation, secure mechanical mounting, and wide environmental adaptability for industrial reliability.
Electrical Ratings
- Rated current capacity of 10A ensures stable performance for industrial relay loads.
- Rated voltage of 300V supports reliable operation in standard control circuits.
- Dielectric strength of 2000V/S provides enhanced insulation and safety margin.
Mechanical & Installation Features
- Screw torque of 1.0Nm guarantees secure electrical connections under vibration.
- Supports external wiring from 20–14 AWG (0.5–2.5mm²) for flexible installation.
- Compact design facilitates easy integration into control panels.
Environmental Conditions
- Wide ambient temperature range from -40℃ to +85℃ ensures durability in harsh environments.
- Stable electrical and mechanical performance under varying thermal conditions.
- Resistant to typical industrial humidity and operational stresses.
Physical Characteristics
- Lightweight construction at 43g for efficient panel assembly.
- Optimized socket design for long service life.
- Adapter relay compatibility with Siemens, Schneider, TE, Eaton, Weidmuller.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
CDT08A-E
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

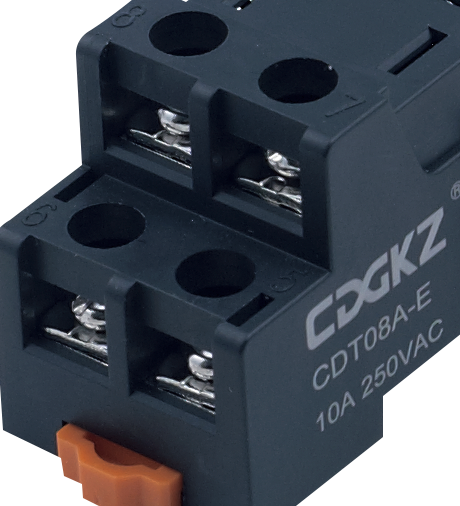

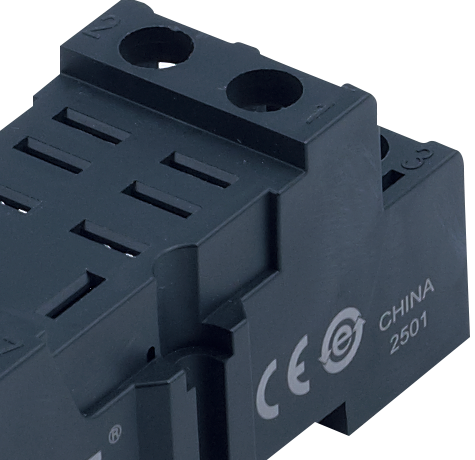

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the key electrical ratings of the CDT08A-E relay socket?
The socket supports a rated current of 10A and a rated voltage of 300V. It also provides a dielectric strength of 2000V/S, ensuring safe insulation and reliable operation in industrial control systems.
2.What mechanical installation features does this relay socket offer?
The CDT08A-E features a screw torque of 1.0Nm, allowing secure wire fastening. It accommodates external connection wires from 20–14 AWG (0.5–2.5 mm²), ensuring flexible integration into control panels and automation setups.
3. What environmental conditions can the CDT08A-E operate in?
This socket is designed for wide temperature endurance, operating reliably between -40℃ to +85℃. This makes it suitable for harsh industrial environments, including both low-temperature and high-heat applications.
4.What are the physical characteristics of this relay socket?
The CDT08A-E is compact and lightweight, with a weight of 43g. Its robust design ensures mechanical durability, making it suitable for long-term use in automation cabinets and equipment racks.
5. How does the CDT08A-E ensure reliable electrical connections?
The socket uses precision-engineered terminals that provide low contact resistance and strong clamping force. This reduces the risk of overheating, voltage drops, and connection failures, ensuring long-term electrical reliability in demanding industrial applications.
6.Which relay brands are supported by the CDT08A-E model?
The socket is compatible with Siemens, Schneider, TE (Tyco Electronics), Eaton, and Weidmuller relays, providing versatility for procurement across multiple international brands.
