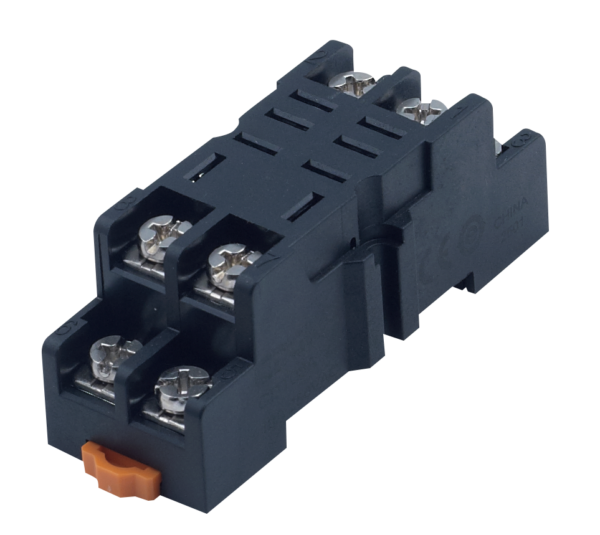

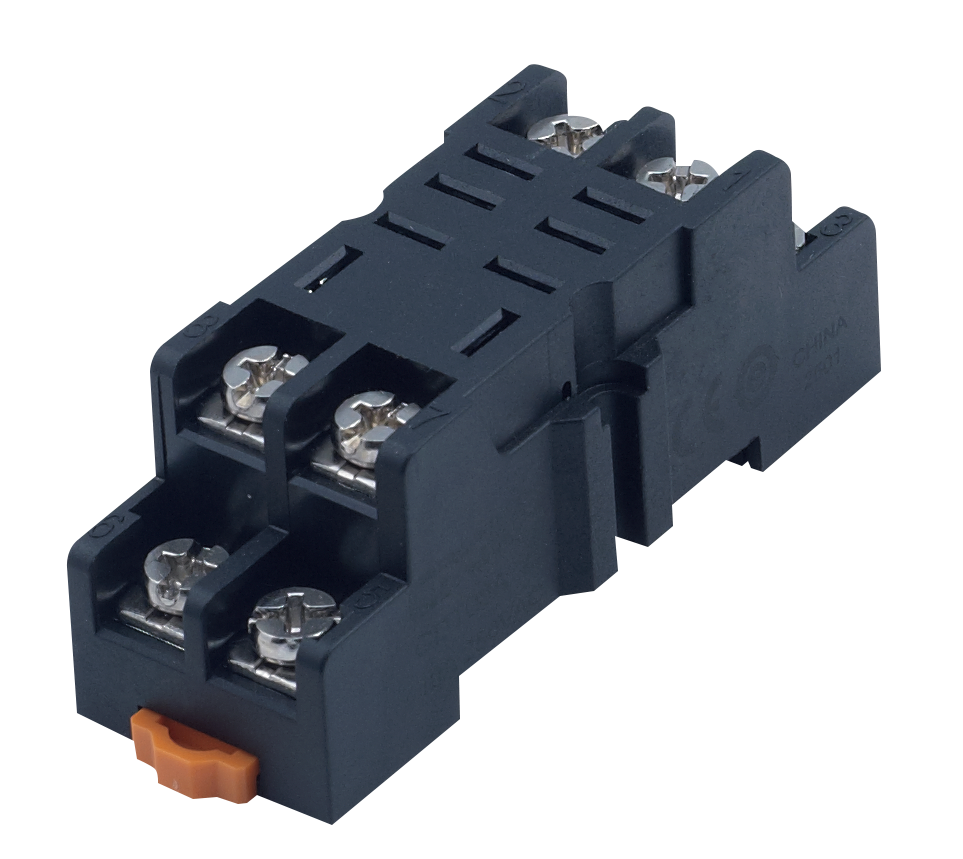

10A 300V 8PIN Relay socket CDT08A Manufacturer of the Industrial Control Products CDGKZ
| Product model | CDT08A |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 43G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
CDT08A relay socket delivers reliable electrical insulation, robust mechanical strength, and environmental adaptability for industrial automation applications.
Electrical Ratings
- Rated current: 10A ensuring stable load capacity for industrial applications.
- Rated voltage: 300V with safe insulation for medium-voltage control systems.
- Dielectric strength: 2000V/S providing reliable electrical isolation.
Mechanical & Installation Features
- Screw torque: 1.0Nm enabling firm and secure terminal connections.
- Supports external connection wires: 20-14 AWG / 0.5–2.5mm² for flexible wiring.
- Compact structure optimized for quick installation and maintenance.
Environmental Conditions
- Wide operating temperature: -40℃ to +85℃ for harsh industrial environments.
- Resistant to thermal variations ensuring stable operation under extreme climates.
- Built to perform reliably in demanding automation and control systems.
Physical Characteristics
- Lightweight design: 43g for easy handling and integration.
- Robust housing ensures durability and long service life.
- Compatible with multiple adapter relays for system flexibility.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
CDT08A
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the electrical ratings of the CDT08A relay socket?
The CDT08A relay socket supports a rated current of 10A and a rated voltage of 300V, ensuring stable power delivery in industrial control systems. Its dielectric strength of 2000V/S provides reliable insulation and safety under high-voltage conditions.
2.What type of wiring and connection does the CDT08A support?
The socket is designed for 20–14 AWG (0.5–2.5mm²) external connection wires, ensuring versatility in wiring installation. The screw torque specification of 1.0Nm guarantees secure mechanical fastening, minimizing the risk of loose contacts and overheating.
3.How does the CDT08A perform under different environmental conditions?
With an ambient temperature range from -40℃ to +85℃, the CDT08A relay socket is engineered to withstand harsh industrial environments, including low-temperature outdoor applications and high-heat control cabinets.
4.What are the physical characteristics of the CDT08A?
The socket has a lightweight design at 43g, making it suitable for high-density installations without adding significant panel load. Despite its compact size, it provides robust mechanical durability for long-term operation.
5. Which industrial standards and brands are supported?
The CDT08A relay socket is compatible with multiple leading relay brands, offering procurement flexibility and standardization across projects. This reduces the need for multiple socket types in inventory.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it is perfectly compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays, and the socket quality exceeds that of international brands.
