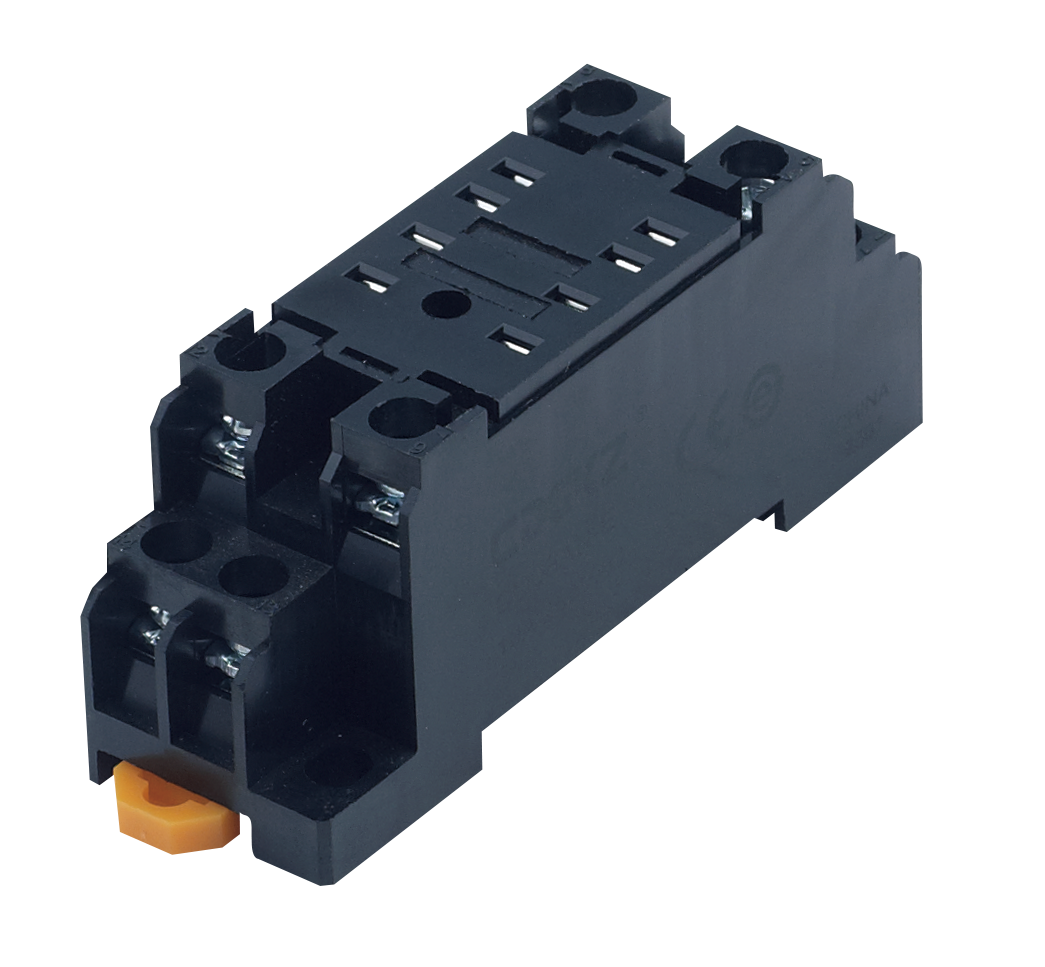

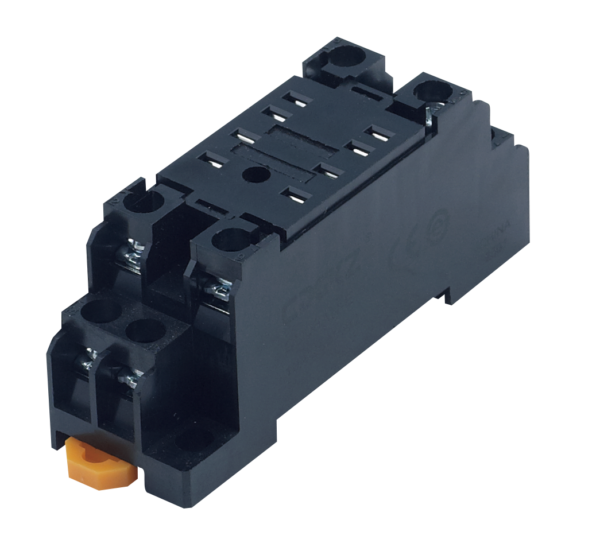

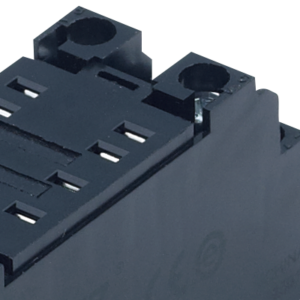

10A 300V 8PIN Relay socket CDO8AN-E Manufacturer of the Industrial Control Products CDGKZ
| Product model | CD08AN-E |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 33G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
CD08AN-E relay socket offers secure connectivity, stable insulation, and reliable operation across wide industrial environments.
Electrical Ratings
- Rated current of 10A supports reliable medium-load switching.
- Rated voltage up to 300V ensures compatibility with industrial control circuits.
- Dielectric strength 2000V/S guarantees insulation safety between contacts and coil.
Mechanical & Installation Features
- Screw torque of 1.0Nm provides secure terminal fastening.
- Supports external connection wire range 20-14 AWG / 0.5–2.5mm², enabling flexible wiring.
- Compact design allows for easy panel or rail integration.
Environmental Conditions
- Wide operating temperature range -40℃ to +65℃ ensures stable function in harsh climates.
- Resistant to thermal variation, maintaining electrical reliability.
- Suitable for industrial and automation environments requiring durability.
Physical Characteristics
- Lightweight design, only 33g, for easy handling and installation.
- Robust housing ensures mechanical stability.
- Compact form factor supports high-density panel layouts.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
CD08AN-E
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

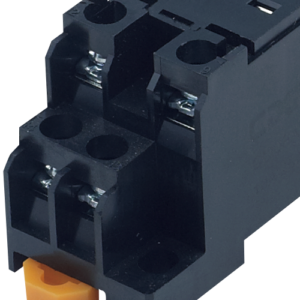

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical performance of the CD08AN-E relay socket?
The CD08AN-E is designed for 10A rated current and 300V rated voltage, ensuring stable operation in industrial control applications. It also provides a dielectric strength of 2000V/S, which guarantees strong insulation performance and safety under demanding conditions.
2.What type of wiring does the CD08AN-E support?
This model supports 20-14 AWG (0.5–2.5mm²) external connection wires, enabling flexible installation for different wiring standards. Its screw clamp terminals are designed for 1.0Nm tightening torque, ensuring secure and vibration-resistant electrical connections.
3.What environmental conditions can the CD08AN-E operate in?
The socket is optimized for -40℃ to +65℃ ambient temperature, making it suitable for both low-temperature and high-temperature environments. This ensures long-term reliability in applications such as industrial automation, transportation systems, and control cabinets.
4.How does the CD08AN-E ensure mechanical and electrical stability?
With a compact 33g lightweight structure and robust screw terminals, the CD08AN-E provides excellent mechanical stability during installation. Its high insulation resistance and precise terminal design minimize contact resistance, ensuring low heat generation and extended socket lifetime.
5. What are the typical applications of the CD08AN-E relay socket?
The CD08AN-E is widely used in industrial control systems, power distribution panels, automation equipment, and safety relays. It is especially valued for OEM integration, offering a reliable relay base for both standard and custom relay-driven designs.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
