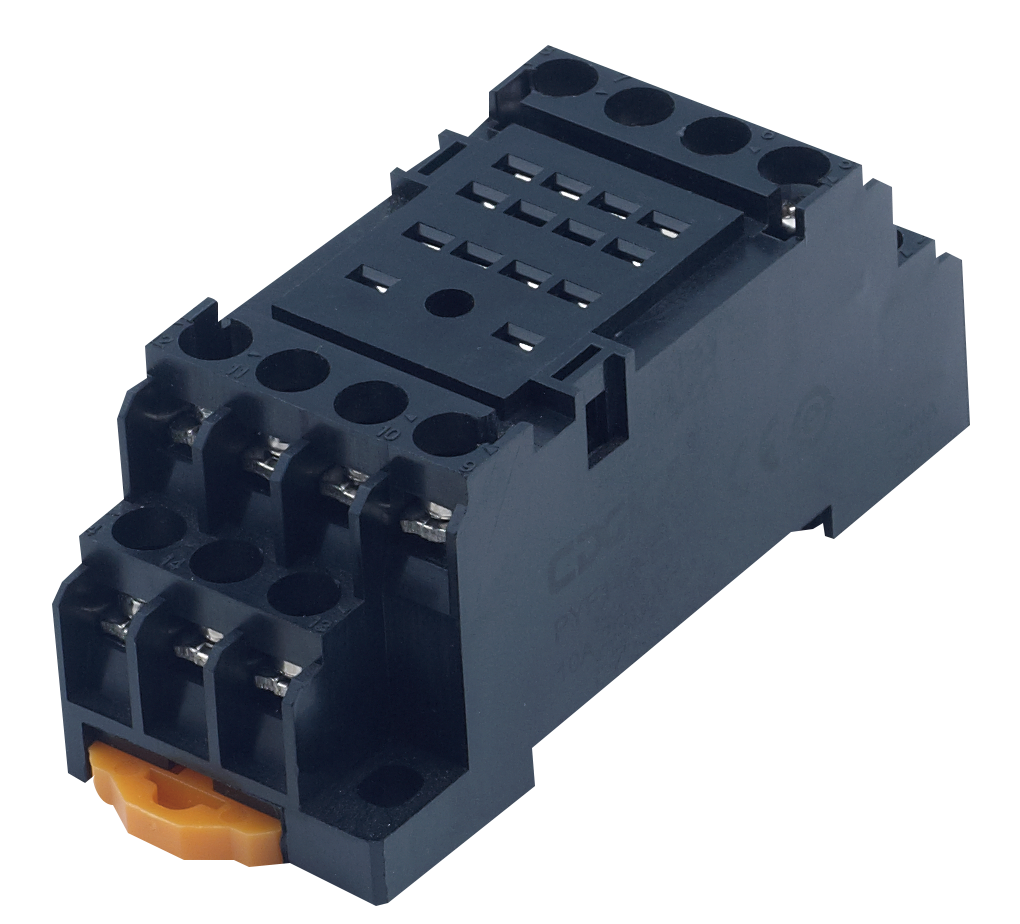

7A 300V 14PIN Relay socket CD14AN-E Manufacturer of the Industrial Control Products CDGKZ
| Product model | CD14AN-E |
| Rated current | 7A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 49G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details

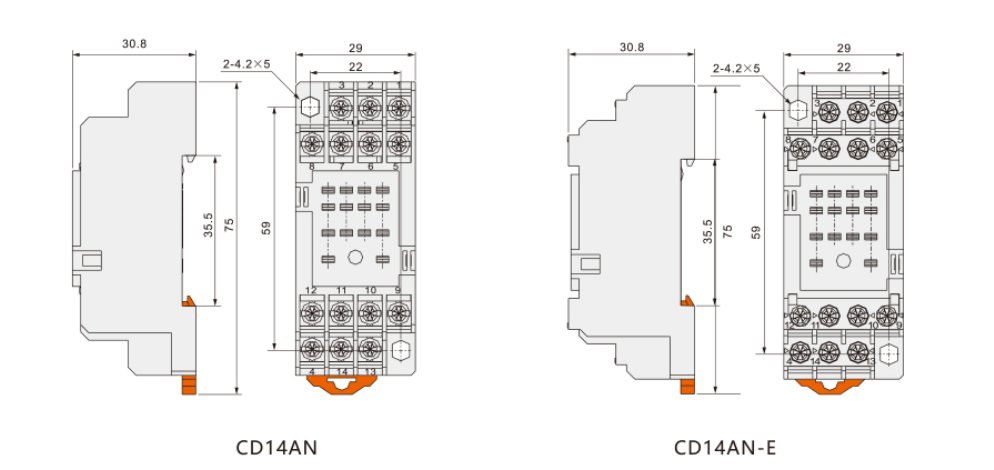

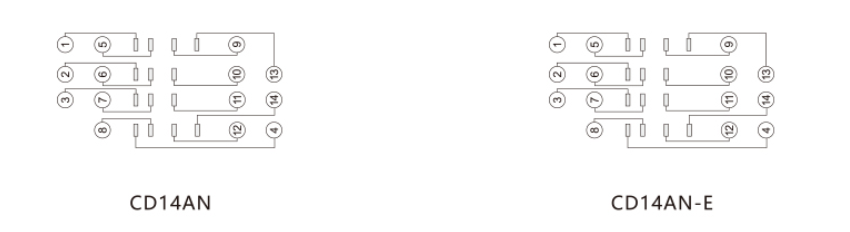

Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The CD14AN-E relay socket offers robust electrical performance, reliable mechanical stability, and broad environmental adaptability for industrial automation systems.
Electrical Ratings
Rated current: 7A
Rated voltage: 300V
Dielectric strength: 2000V/S
Ensures safe and reliable operation under industrial load conditions.
Mechanical & Installation Features
Screw torque: 1.0Nm for secure terminal tightening
External connection wire range: 20–14 AWG / 0.5–2.5 mm²
Designed for fast, stable installation with optimal conductor compatibility.
Environmental Conditions
Ambient operating temperature: -40℃ to +65℃
Withstands wide temperature variations, suitable for harsh industrial environments.
Physical Characteristics
Weight: 49g
Compact, lightweight design for space-efficient control panel integration.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.

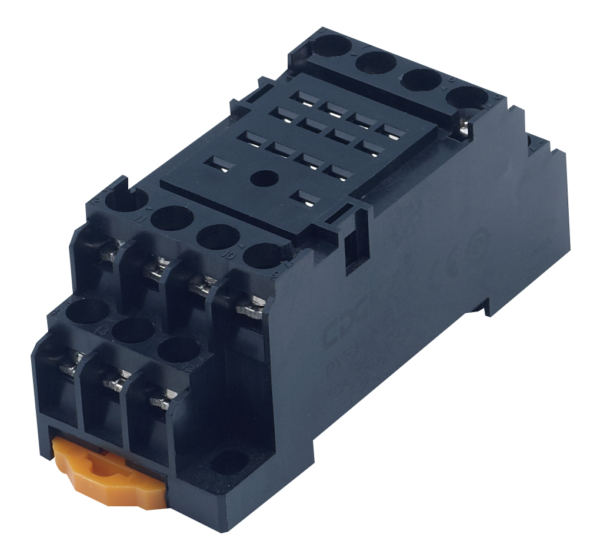

Structural & Functional Advantages
CD14AN-E
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

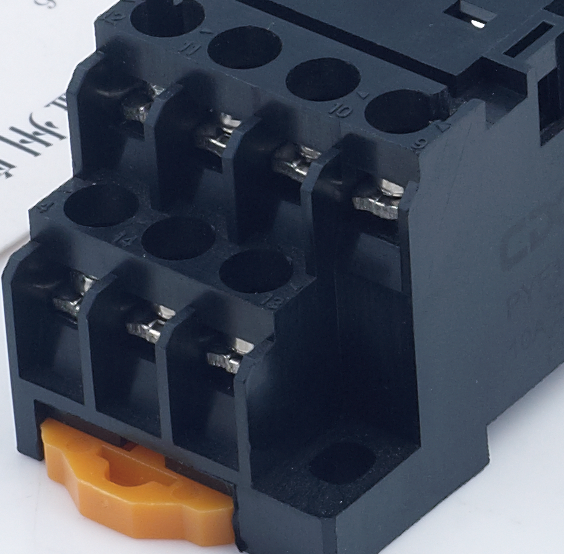

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the electrical ratings of the CD14AN-E relay socket?
The CD14AN-E is rated for 7A current and 300V voltage, with a dielectric strength of 2000V/S. These parameters ensure stable operation under industrial load conditions and compliance with insulation safety standards.
2.How is the CD14AN-E installed and what type of wiring does it support?
The socket is designed with screw terminal connections rated at 1.0Nm torque. It supports external wiring sizes ranging from 20–14 AWG (0.5–2.5 mm²), ensuring compatibility with common industrial cabling practices.
3. What environmental conditions can the CD14AN-E withstand?
The socket operates reliably within a temperature range of –40℃ to +65℃, making it suitable for use in harsh environments, including cold storage, heavy industrial plants, and high-heat control cabinets.
4.What are the physical characteristics of the CD14AN-E?
Compact and lightweight, the CD14AN-E weighs 49g. Despite its small form factor, it provides secure relay mounting, robust terminal connections, and long-term mechanical durability.
5. Why should procurement managers consider CD14AN-E over international brands?
The CD14AN-E delivers equivalent or superior technical performance compared to international brands, offering high dielectric strength, reliable terminal fastening, and extended environmental resilience, all with improved cost efficiency and quality assurance.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it is fully compatible with Siemens, Schneider, TE, Weidmuller and Eaton relays, while providing socket quality that exceeds many international brands.
