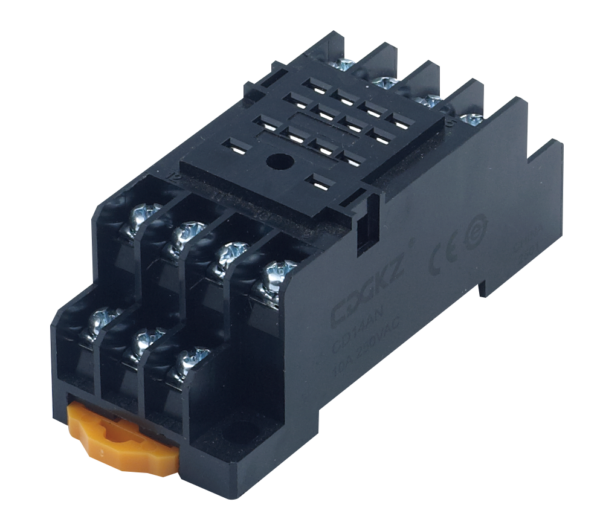

7A 300V 14PIN Relay socket CD14AN Manufacturer of the Industrial Control Products CDGKZ
| Product model | CD14AN |
| Rated current | 7A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 2000V/S |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 48G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |

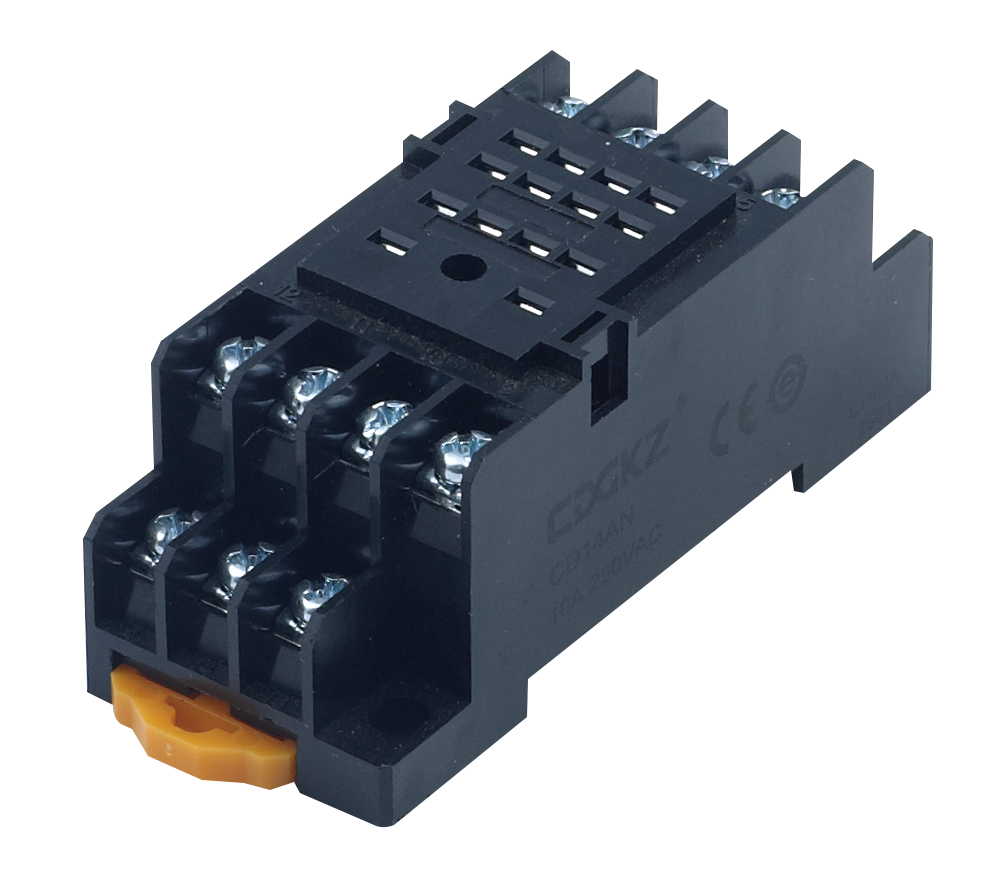

Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
CD14AN relay socket delivers 7A/300V reliability, robust insulation, wide temperature endurance, and versatile compatibility for industrial automation systems.
Electrical Ratings
Rated Current: 7A
Rated Voltage: 300V
Dielectric Strength: 2000V/S, ensuring high insulation reliability
Stable electrical performance designed for industrial automation systems
Mechanical & Installation Features
Screw Torque: up to 2.0 N·m for secure fastening
Wire Range: 20–14 AWG / 0.5–2.5 mm²
Engineered for easy installation and consistent contact reliability
Environmental Conditions
Operating Temperature Range: -40℃ to +65℃
Reliable under harsh industrial environments, vibration, and thermal cycling
Ensures long-term stability across demanding application scenarios
Physical Characteristics
Net Weight: 48g
Compact, lightweight construction for modular control panels
Rigid housing design for durability and mechanical stability
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
CD14AN
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

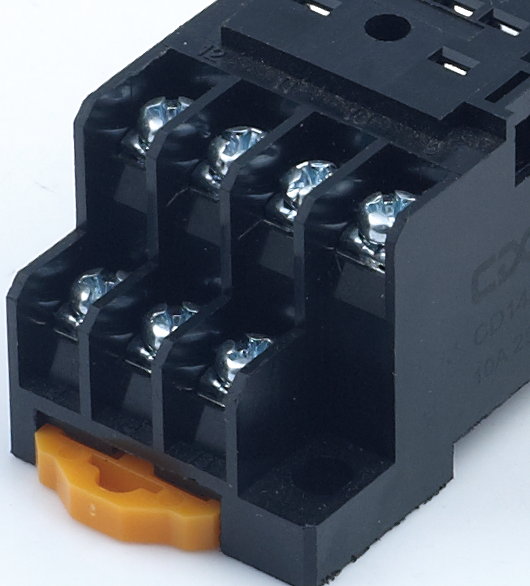

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts

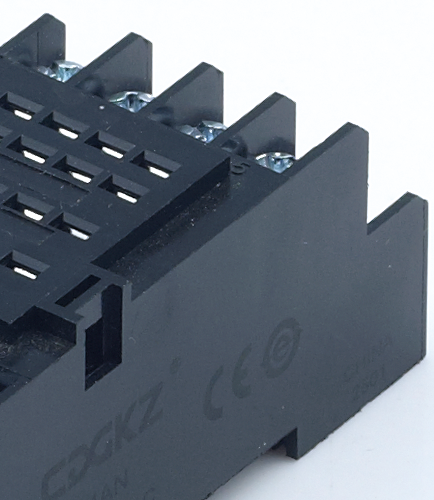

Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the key electrical ratings?
Rated 7A / 300V with 2000V/S dielectric strength, ensuring safe operation for control panels, motor circuits, and distribution loads.
2.What wiring and installation specs should I plan for?
Supports 20–14 AWG (0.5–2.5 mm²) conductors; terminals tighten up to 2.0 N·m for secure, vibration‑resistant connections.
3. How does it perform in harsh environments?
Operates -40℃ to +65℃ with stable insulation and contact integrity under vibration, electrical stress, and thermal cycling.
4.What are the mechanical/physical characteristics?
Compact 48 g design with rigid housing for panel density and durability; engineered for quick mounting and reliable retention.
5. How does it compare to international alternatives on reliability and cost?
Delivers high terminal integrity, long service life, and consistent QC at a competitive total cost of ownership.
6.Is this product compatible with Siemens, Schneider,TE, Weidmuller and Eaton relays?
It perfectly fits Siemens, Schneider, TE, Weidmuller and Eaton relays, while offering socket quality superior to leading international brands.
