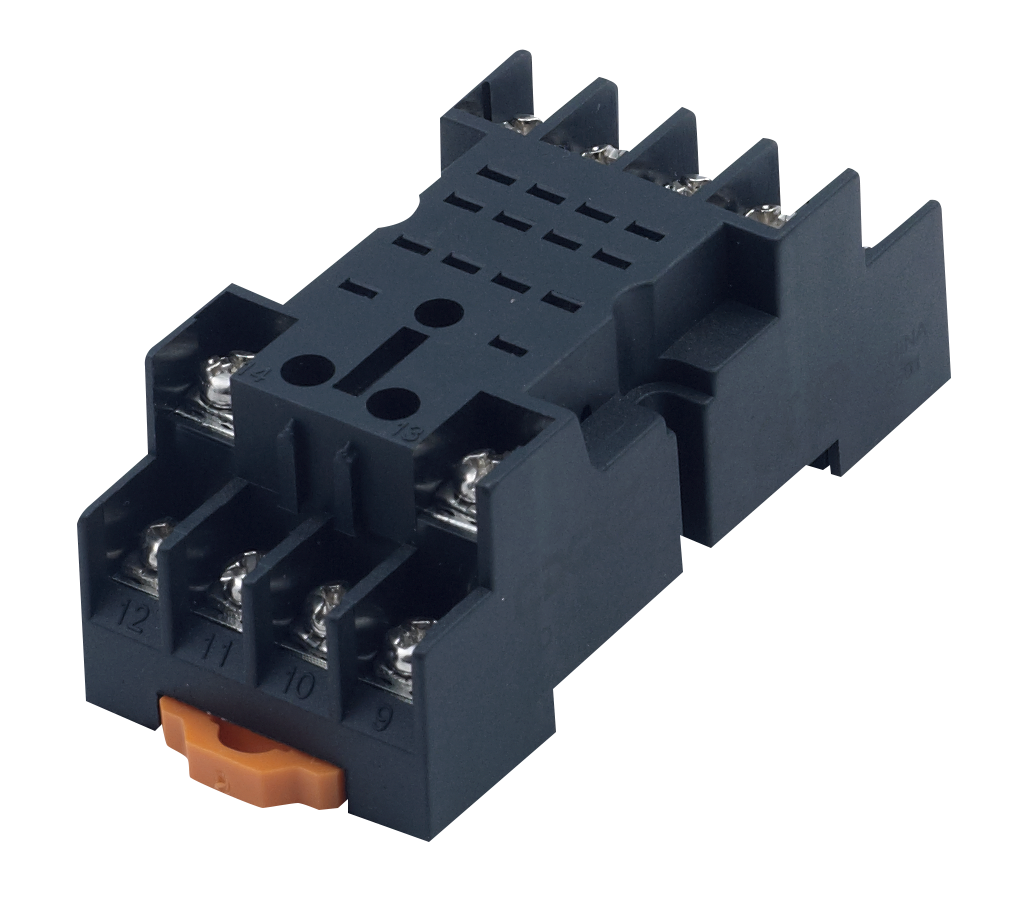

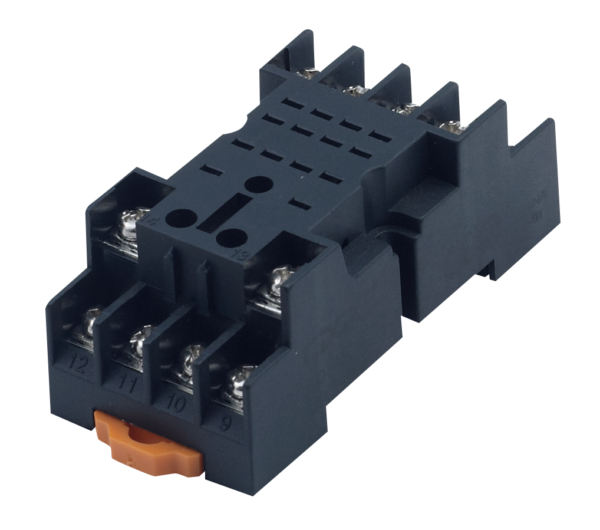

10A 300V 14PIN Relay socket CD14A Manufacturer of the Industrial Control Products CDGKZ
| Product model | CD14A |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 42G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
CD14A socket ensures high electrical reliability, secure wiring, and environmental durability, delivering consistent performance across industrial relay applications.
Electrical Ratings
Rated current: 10A for stable medium-load switching.
Rated voltage: 300V ensuring compatibility with industrial control systems.
Dielectric strength: 2000V/S, providing high insulation reliability.
Mechanical & Installation Features
Screw terminal torque: 1.0Nm for secure conductor fastening.
Accepts wire sizes 20–14 AWG (0.5–2.5mm²) for flexible wiring.
Compact socket design simplifies installation in control panels.
Environmental Conditions
Wide ambient temperature range: -40℃ to +85℃ for harsh environments.
Resistant to thermal cycling in industrial automation settings.
Reliable performance under varying humidity and operational stress.
Physical Characteristics
Weight: 42g, lightweight for efficient panel integration.
Rugged construction for extended service life.
Compatible with Siemens, Schneider, TE, Eaton, Weidmuller relays.
Designed for space-saving arrangement in control cabinets.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
CD14A
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design

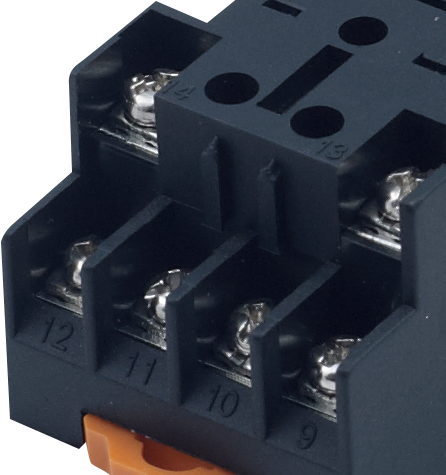

Ensures firm wiring and mechanical reliability, reducing risk of loose contacts

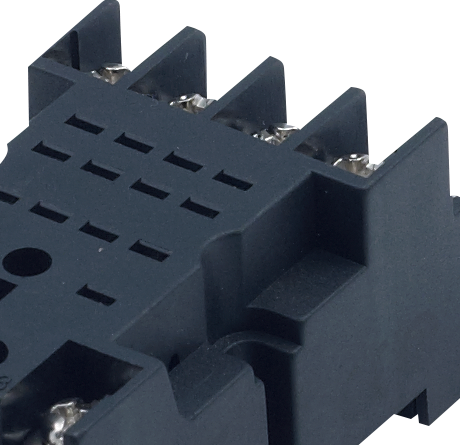

Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What are the electrical ratings of the CD14A relay socket?
The CD14A socket is rated for 10A current and 300V voltage, with a dielectric strength of 2000V/S, ensuring safe and stable performance under industrial load conditions.
2.What mechanical and installation features does this product provide?
The socket supports screw connections with a recommended torque of 1.0Nm. It accommodates external connection wires ranging from 20–14 AWG (0.5–2.5 mm²), enabling secure and flexible wiring in control panels.
3. How does the CD14A handle environmental conditions?
Designed for durability, the CD14A operates reliably within a wide ambient temperature range of -40℃ to +85℃, making it suitable for harsh industrial environments.
4.What are the physical characteristics of this relay socket?
The CD14A weighs only 42g, offering a compact and lightweight structure that optimizes space utilization in dense control systems without compromising robustness.
5. What industrial standards and applications does it support?
The CD14A is engineered for industrial automation, power distribution, and control systems. Its high dielectric strength and strong mechanical build ensure compliance with stringent safety and reliability requirements.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, the CD14A relay socket is perfectly compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its socket quality exceeds that of international brands, providing superior reliability and value.
