12A 300V 9PIN Relay socket 18F-2Z-C5 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 18F-2Z-C5 |
| Rated current | 12A |
| Rated voltage | 300V |
| Dielectric strength | 4000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 56G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
Engineered for high reliability, the 18F-2Z-C5 relay socket delivers secure electrical performance and robust adaptability across harsh industrial conditions.
Electrical Ratings
Rated current: 12A
Rated voltage: 300V
Dielectric strength: 4000V/S
High electrical endurance ensures reliable load handling in industrial automation systems.
Mechanical & Installation Features
Screw torque: 1.0Nm for secure terminal fastening
Supports external connection wire: 20-14 AWG / 0.5–2.5mm²
Simple installation with robust screw terminals ensuring stable wiring in demanding environments.
Environmental Conditions
Operating temperature range: -40℃ to +65℃
Suitable for both cold storage facilities and high-temperature industrial applications.
Physical Characteristics
Compact and durable design
Weight: 56g
Adapter compatibility: Siemens, Schneider, TE, Eaton, Weidmuller relays
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages

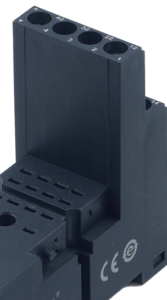

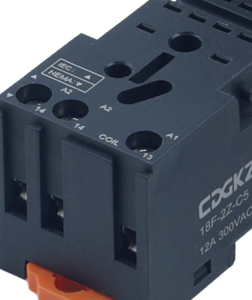

18F-2Z-C5
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical capacity of the 18F-2Z-C5 relay socket?
The socket supports a rated current of 12A and a rated voltage of 300V, ensuring stable performance in industrial power distribution and control systems.
2.How does the dielectric strength benefit operational safety?
With a dielectric strength of 4000V/S, the socket provides high insulation resistance, minimizing the risk of electrical breakdown and ensuring safe operation under demanding industrial environments.
3. What type of wiring connections are supported?
The socket accommodates external connection wires of 20–14 AWG (0.5–2.5 mm²), providing flexibility for various installation needs while maintaining secure and reliable clamping with a screw torque of 1.0 Nm.
4.Can this relay socket withstand harsh environmental conditions?
Yes, the socket operates reliably within an ambient temperature range of –40℃ to +65℃, making it suitable for diverse applications including low-temperature and high-heat industrial environments.
5. What is the weight and mechanical stability of the socket?
The socket weighs 56g, offering a robust yet compact structure. Its engineered housing ensures mechanical durability and vibration resistance in industrial control panels.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it is fully compatible with relays from Siemens, Schneider, TE, Eaton, and Weidmuller. Moreover, its socket quality exceeds that of international brands, ensuring superior reliability.
