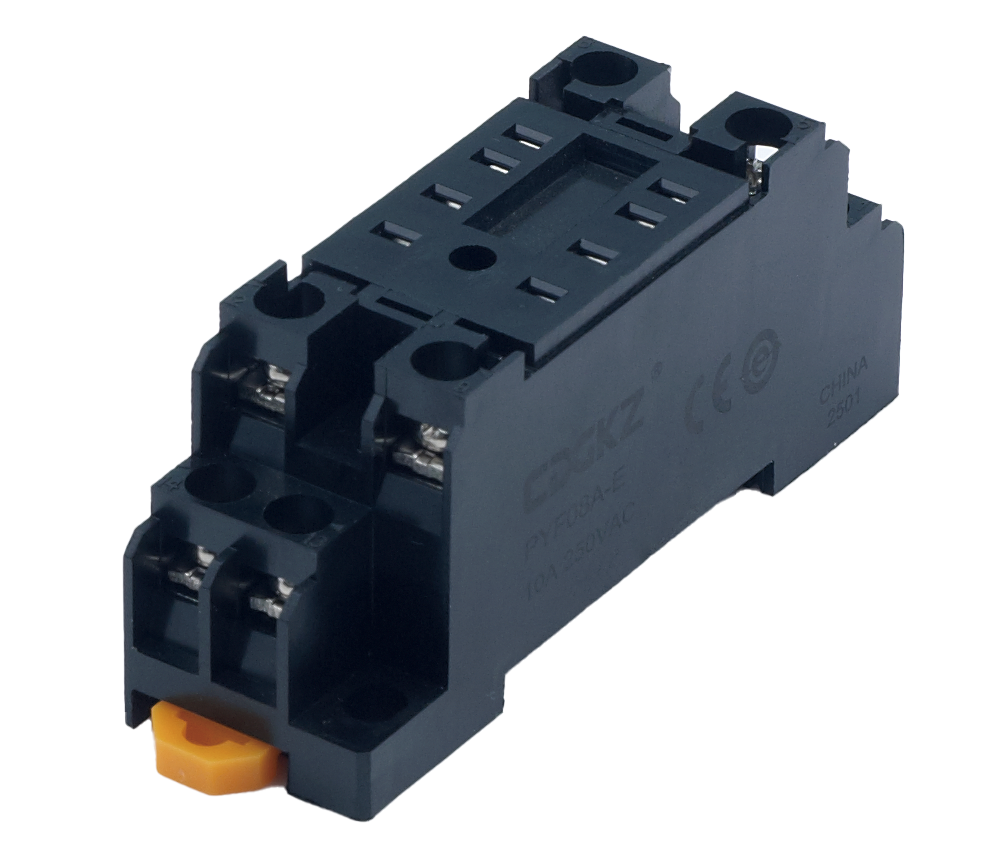

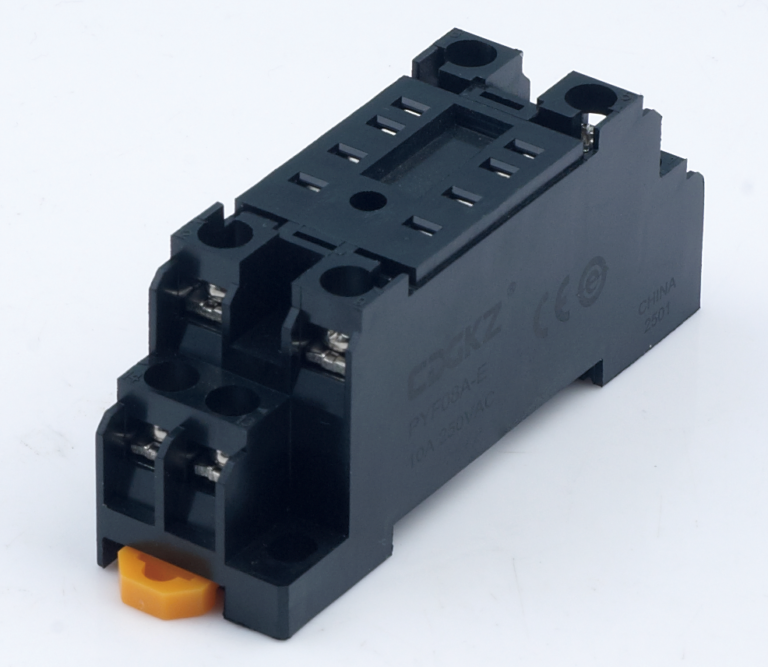

10A 300V 8PIN Relay socket 18F-2Z-C2 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 18F-2Z-C2 |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 37G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
Reliable industrial relay socket offering high dielectric strength, secure wiring, and robust environmental performance for demanding automation applications.
Electrical Ratings
Rated current: 10A, ensuring stable load handling.
Rated voltage: 300V, suitable for industrial control circuits.
Dielectric strength: 2000V/S, providing high insulation reliability.
Mechanical & Installation Features
Screw torque: 1.0Nm, supporting secure and vibration-resistant connections.
External connection wire range: 20–14 AWG / 0.5–2.5 mm², allowing flexible wiring options.
Environmental Conditions
Operating temperature range: -40℃ to +65℃, ensuring reliable performance in harsh industrial environments.
Physical Characteristics
Compact weight: 37g, enabling easy integration into control panels.
Adapter relay compatibility: Siemens, Schneider, TE, Eaton, Weidmuller.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
18F-2Z-C2
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

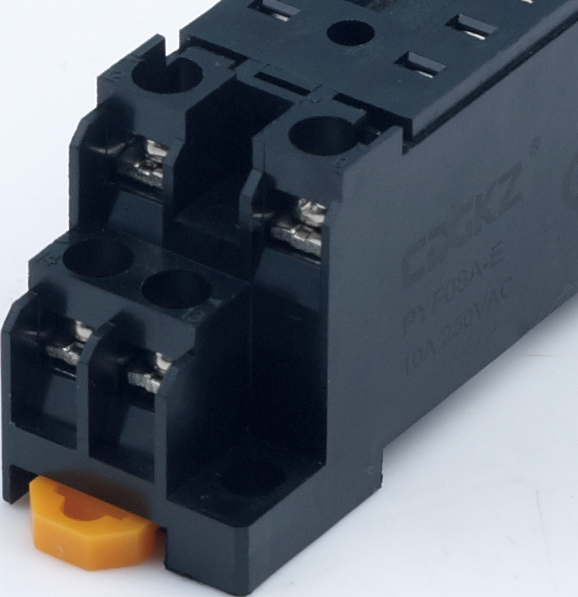

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage of the 18F-2Z-C2 relay socket?
The socket is designed for a rated current of 10A and a rated voltage of 300V, ensuring reliable performance in industrial control circuits.
2.What dielectric strength does this relay socket provide?
The socket withstands 2000V/S dielectric strength, offering high insulation capability and safety margin for demanding electrical environments.
3. What type of wiring and screw connection does the socket support?
It supports external connection wires ranging from 20–14 AWG (0.5–2.5 mm²) with a recommended screw torque of 1.0 Nm, ensuring secure electrical contacts and minimizing loosening under vibration.
4.What are the environmental operating conditions for this product?
The socket is built for robust performance in harsh industrial conditions, with an ambient operating temperature range of -40℃ to +65℃.
5.What are the physical characteristics of the socket?
The 18F-2Z-C2 socket has a weight of 37g, making it lightweight yet durable, with a compact design for space-efficient installation.
6.Can this product be used with Siemens, Schneider, TE, Weidmuller and Eaton relays?
Yes, it can perfectly adapt to corresponding relays from Siemens, Schneider, TE, Eaton, and Weidmuller, while offering socket quality that surpasses international brands.
