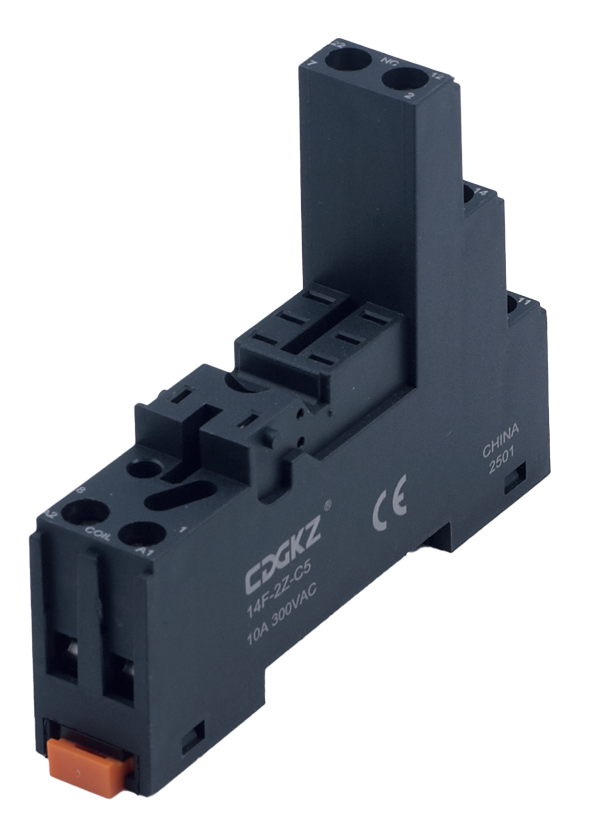

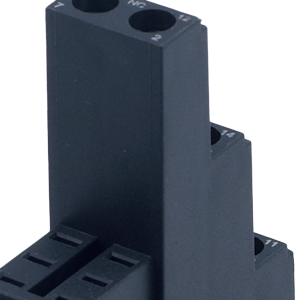

10A 300V 8PIN Relay socket 14F-1Z-C3 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 14F-2Z-C5 |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2500V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+85℃ |
| Weight | 38G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 14F-2Z-C5 relay socket delivers reliable electrical performance, robust mechanical stability, and excellent adaptability for demanding industrial environments.
Electrical Ratings
- Rated current capacity: 10A, ensuring stable load performance.
- Rated voltage: 300V, suitable for industrial control applications.
- Dielectric strength: 2500V/S, providing robust insulation protection.
Mechanical & Installation Features
- Screw torque: 1.0Nm, ensuring secure wire fastening.
- Compatible with external connection wire: 20-14 AWG / 0.5-2.5mm².
- Compact and user-friendly installation with reliable terminal clamping.
Environmental Conditions
- Operating temperature range: -40℃ to +85℃, adaptable to harsh industrial environments.
- High durability under wide thermal variations.
- Designed for stable performance in demanding factory and field applications.
Physical Characteristics
- Product weight: 38g, lightweight yet durable.
- Model: 14F-2Z-C5, designed for compact relay system integration.
- Robust housing ensures long-term reliability.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
14F-2Z-C5
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical performance of the 14F-2Z-C5 relay socket?
The socket is designed for a rated current of 10A and a rated voltage of 300V, making it suitable for most industrial control and automation applications. It also offers a dielectric strength of 2500V/S, ensuring reliable electrical insulation and safety under high-voltage conditions.
2.What is the recommended wire size and screw torque for secure connections?
The socket supports external connection wires from 20–14 AWG (0.5–2.5mm²). For stable and vibration-resistant installation, a screw torque of 1.0Nm is recommended. This guarantees strong mechanical contact and prevents loosening during operation.
3. How does the 14F-2Z-C5 perform under different environmental conditions?
The socket is engineered to operate within a wide ambient temperature range of –40℃ to +85℃. This ensures consistent performance in harsh industrial environments, including cold storage, outdoor panels, and high-temperature machine rooms.
4.What are the mechanical features and durability aspects of this socket?
With a weight of 38g, the 14F-2Z-C5 provides a compact yet robust construction. The housing is manufactured with high-strength insulating materials, offering resistance to heat, flame, and electrical stress, which extends the product’s service life and reliability in demanding applications.
5. In which applications is the 14F-2Z-C5 relay socket commonly used?
This relay socket is widely applied in industrial automation, power distribution cabinets, HVAC control, machinery interlock systems, and safety circuits. Its universal pin configuration allows seamless integration into both new designs and replacement projects.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
