8A 300V 8PIN Relay socket 14F-2Z-A1 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 14F-2Z-A1 |
| Rated current | 8A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Ambient temperature | -40℃-+85℃ |
| Weight | 4G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 14F-2Z-A1 offers compact, high-reliability performance with excellent insulation, environmental resistance, and universal relay compatibility.
Electrical Ratings
- Rated current: 8A ensures reliable load handling for industrial circuits.
- Rated voltage: 300V suitable for standard control and power applications.
- Dielectric strength: 2000V/S provides safe isolation and high insulation performance.
Mechanical & Installation Features
- Compact and lightweight at only 4g for easy integration.
- Standardized terminal layout ensures fast installation and compatibility.
- Designed for secure connection with industrial relays.
Environmental Conditions
- Wide ambient temperature range: -40℃ to +85℃ for stable performance in harsh conditions.
- Resistant to thermal stress and vibration during industrial operation.
Physical Characteristics
- Lightweight structure enhances portability and ease of assembly.
- Robust plastic housing ensures durability and long-term stability.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
14F-2Z-A1
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
PCB board welding Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems

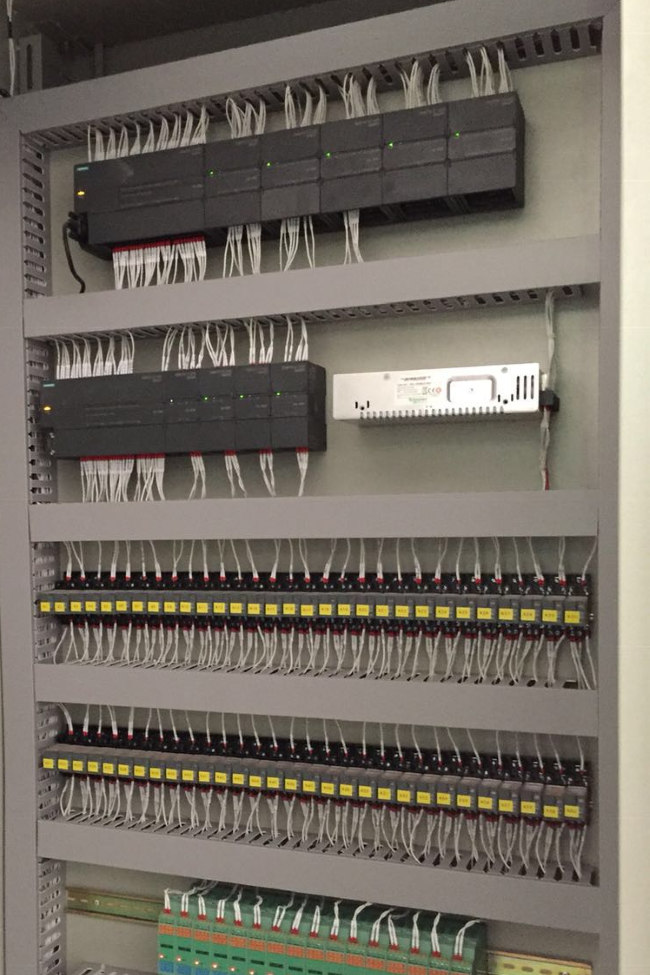

PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical performance of the 14F-2Z-A1 socket?
The 14F-2Z-A1 socket supports a rated current of 8A and a rated voltage of 300V. This makes it suitable for medium-power industrial relay applications requiring stable electrical conductivity and safety margins.
2.What dielectric strength does this socket provide?
The socket is tested to withstand 2000V/S dielectric strength, ensuring insulation reliability and minimizing the risk of electrical breakdown in demanding industrial environments.
3. What are the operating environmental conditions for the 14F-2Z-A1?
It is designed for an ambient temperature range of -40℃ to +85℃, guaranteeing stable performance in both low-temperature and high-temperature industrial settings.
4.How lightweight is the socket and what are the benefits?
The socket weighs only 4g, which provides flexibility for compact installations and helps reduce the overall weight of the electrical panel without compromising durability.
5. What applications typically use the 14F-2Z-A1?
This socket is widely applied in control cabinets, automation equipment, and signal switching systems, where space efficiency, reliable insulation, and wide compatibility are required.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, it is perfectly compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, the socket quality exceeds that of international brands, providing superior durability and reliability.
