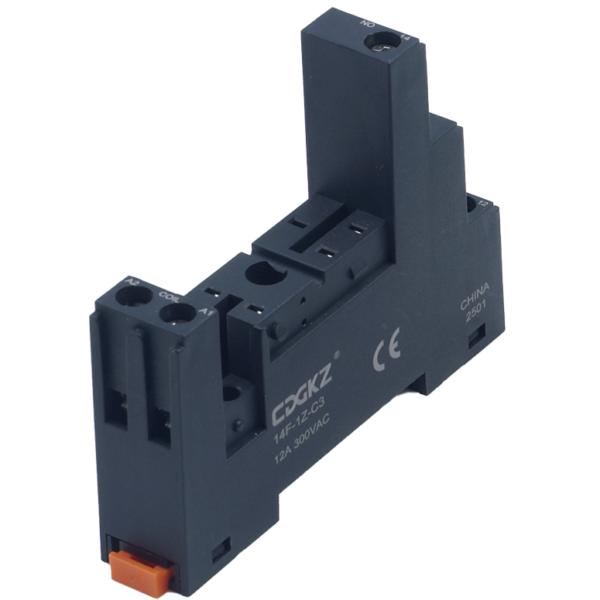

12A 300V 5PIN Relay socket 14F-1Z-C3 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 14F-1Z-C3 |
| Rated current | 12A |
| Rated voltage | 300V |
| Dielectric strength | 4000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 34G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details

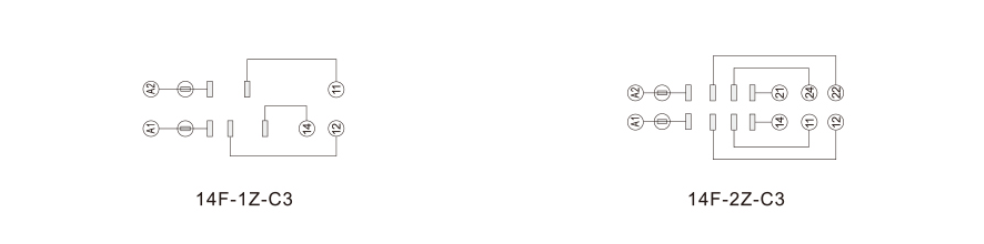

Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 14F-1Z-C3 relay socket offers robust electrical insulation, secure installation, and high reliability across demanding environments.
Electrical Ratings
- Rated current: 12A for reliable medium-load applications.
- Rated voltage: 300V ensuring stable performance in control circuits.
- Dielectric strength: 4000V/S providing excellent insulation and safety margin.
Mechanical & Installation Features
- Screw torque: 1.0Nm ensuring secure and vibration-resistant wire fastening.
- External connection wire: supports 20-14 AWG (0.5–2.5mm²) for flexible wiring options.
- Simple installation with optimized contact pressure for long-term reliability.
Environmental Conditions
- Operating temperature: -40℃ to +65℃, suitable for harsh industrial environments.
- Resistant to thermal cycling and humidity, maintaining stable connection integrity.
Physical Characteristics
- Compact weight: 34g for space-saving panel design.
- Rugged structure ensures durability under frequent plug-in/plug-out operations.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.

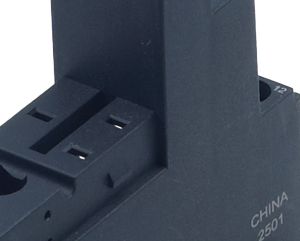

Structural & Functional Advantages
14F-1Z-C3

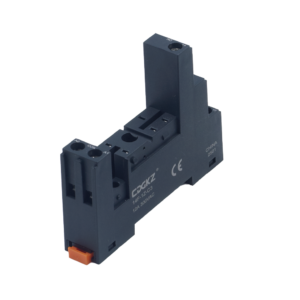

Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design

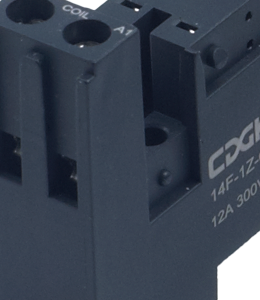

Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical capacity of the 14F-1Z-C3 relay socket?
The socket supports a rated current of 12A and a rated voltage of 300V, ensuring reliable performance in industrial control applications that require stable power transmission.
2.How strong is the dielectric insulation of this relay socket?
The 14F-1Z-C3 provides a dielectric strength of 4000V/S, delivering excellent electrical isolation between circuits, which enhances system safety and long-term reliability.
3. What are the mechanical installation specifications?
The socket features a screw torque of 1.0 Nm and supports external connection wires in the range of 20–14 AWG (0.5–2.5 mm²). These specifications ensure secure fastening and stable connections in demanding environments.
4.Can the socket operate in extreme environments?
Yes. The 14F-1Z-C3 is designed to function within an ambient temperature range of -40℃ to +65℃, making it suitable for both low-temperature and high-temperature industrial conditions.
5. What are the physical characteristics of this relay socket?
It has a compact weight of 34g, allowing for space-efficient installation in control panels, without compromising on mechanical strength and connection reliability.
6.Which relay brands are supported by the CDT08A-E model?
The socket is compatible with Siemens, Schneider, TE (Tyco Electronics), Eaton, and Weidmuller relays, providing versatility for procurement across multiple international brands.
Key Technical Features:
The 14F-1Z-C3 relay socket offers robust electrical insulation, secure installation, and high reliability across demanding environments.
Electrical Ratings
- Rated current: 12A for reliable medium-load applications.
- Rated voltage: 300V ensuring stable performance in control circuits.
- Dielectric strength: 4000V/S providing excellent insulation and safety margin.
Mechanical & Installation Features
- Screw torque: 1.0Nm ensuring secure and vibration-resistant wire fastening.
- External connection wire: supports 20-14 AWG (0.5–2.5mm²) for flexible wiring options.
- Simple installation with optimized contact pressure for long-term reliability.
Environmental Conditions
- Operating temperature: -40℃ to +65℃, suitable for harsh industrial environments.
- Resistant to thermal cycling and humidity, maintaining stable connection integrity.
Physical Characteristics
- Compact weight: 34g for space-saving panel design.
- Rugged structure ensures durability under frequent plug-in/plug-out operations.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
14F-1Z-C3
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical capacity of the 14F-1Z-C3 relay socket?
The socket supports a rated current of 12A and a rated voltage of 300V, ensuring reliable performance in industrial control applications that require stable power transmission.
2.How strong is the dielectric insulation of this relay socket?
The 14F-1Z-C3 provides a dielectric strength of 4000V/S, delivering excellent electrical isolation between circuits, which enhances system safety and long-term reliability.
3. What are the mechanical installation specifications?
The socket features a screw torque of 1.0 Nm and supports external connection wires in the range of 20–14 AWG (0.5–2.5 mm²). These specifications ensure secure fastening and stable connections in demanding environments.
4.Can the socket operate in extreme environments?
Yes. The 14F-1Z-C3 is designed to function within an ambient temperature range of -40℃ to +65℃, making it suitable for both low-temperature and high-temperature industrial conditions.
5. What are the physical characteristics of this relay socket?
It has a compact weight of 34g, allowing for space-efficient installation in control panels, without compromising on mechanical strength and connection reliability.
6.Which relay brands are supported by the CDT08A-E model?
The socket is compatible with Siemens, Schneider, TE (Tyco Electronics), Eaton, and Weidmuller relays, providing versatility for procurement across multiple international brands.
