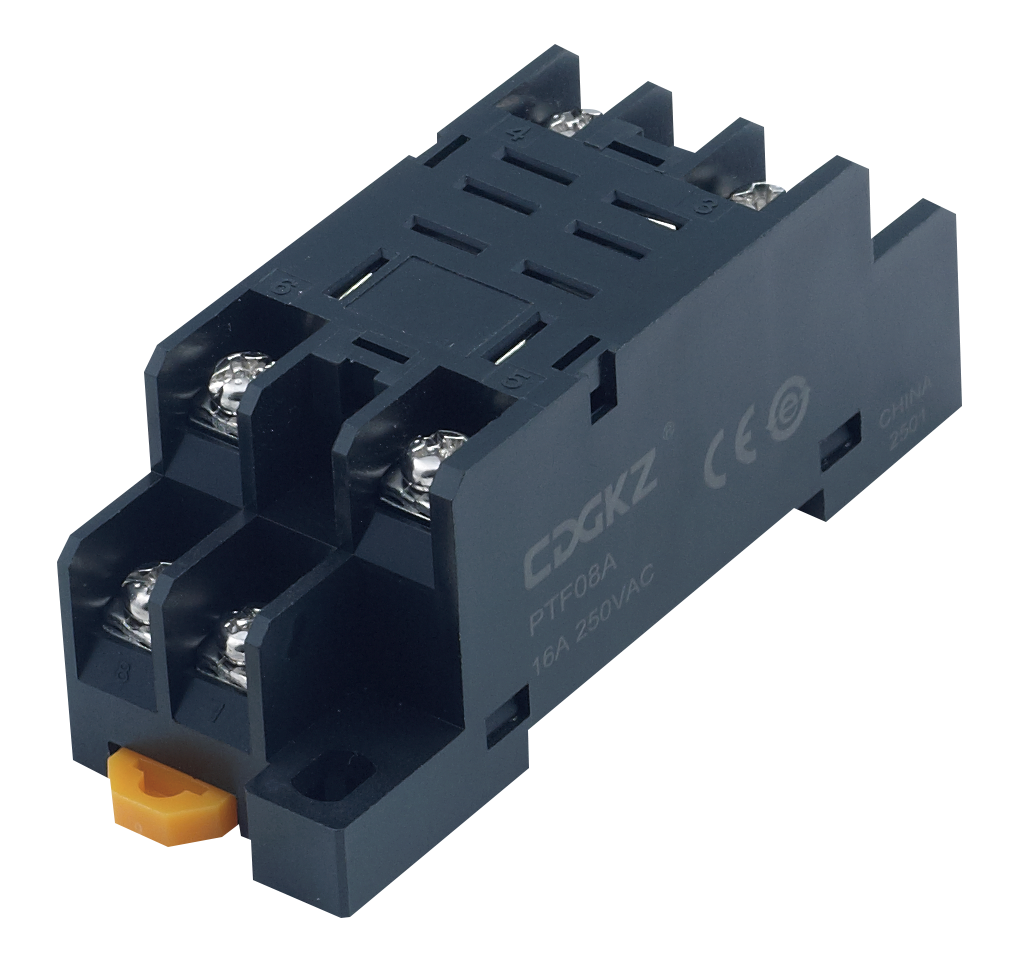

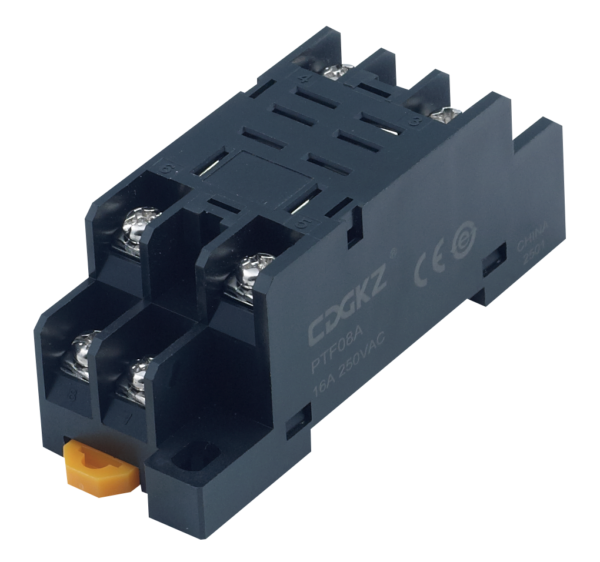

16A 300V 8PIN Relay socket 13F-2Z-C1 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 13F-2Z-C1 |
| Rated current | 16A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 45G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 13F-2Z-C1 relay socket offers robust current capacity, reliable insulation, and flexible wiring support, ensuring dependable operation across industrial environments.
Electrical Ratings
- Rated current: 16A ensuring high load capability.
- Rated voltage: 300V for reliable industrial control applications.
- Dielectric strength: 2000V/S providing secure insulation performance.
Mechanical & Installation Features
- Screw torque: 1.0Nm ensuring stable and vibration-resistant wiring.
- Supports external connection wire range: 20-14AWG / 0.5-2.5mm² for versatile installation.
- Compact mechanical design for quick relay mounting.
Environmental Conditions
- Ambient temperature: -40℃ to +65℃ for broad operating environments.
- Resistant to temperature fluctuations and industrial ambient stresses.
- Stable performance under long-term continuous operation.
Physical Characteristics
- Weight: 45g for durable yet manageable handling.
- Robust housing structure ensuring mechanical reliability.
- Designed for compatibility with multiple relay brands.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
13F-2Z-C1
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What voltage level can this relay socket safely support?
It supports a rated voltage of 300V, making it suitable for a wide range of control and power distribution systems.
2.How robust is the dielectric strength of this model?
The 13F-2Z-C1 features a dielectric strength of 2000V/S, ensuring strong insulation properties and protection against electrical breakdown.
3. How robust is the dielectric strength of this model?
The 13F-2Z-C1 features a dielectric strength of 2000V/S, ensuring strong insulation properties and protection against electrical breakdown.
4.What type of wiring and torque specifications should be followed during installation?
The socket is compatible with 20-14 AWG / 0.5-2.5 mm² external connection wires. A screw torque of 1.0Nm must be applied to guarantee secure electrical contact without damaging the terminals.
5. What environmental conditions can this relay socket withstand?
It is engineered to operate in an ambient temperature range of -40℃ to +65℃. The socket has a weight of 45g, providing a balance between mechanical strength and ease of installation.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
