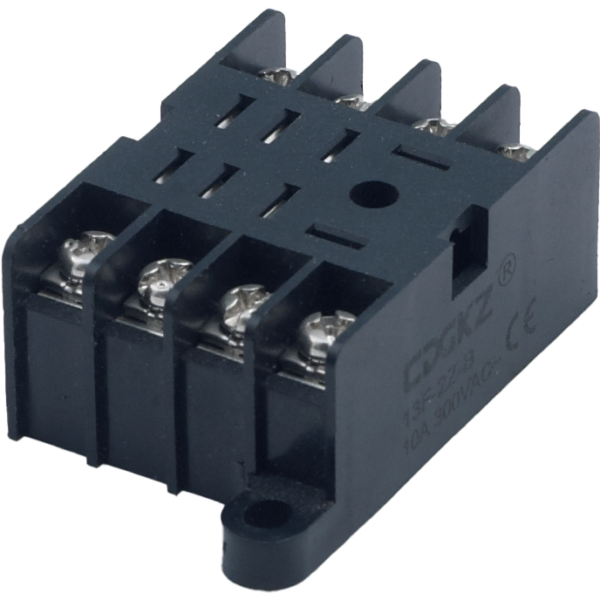

16A 300V 8PIN Relay socket 13F-2Z-B Manufacturer of the Industrial Control Products CDGKZ
| Product model | 13F-2Z-B |
| Rated current | 16A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Ambient temperature | -40℃-+85℃ |
| Weight | 33G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |

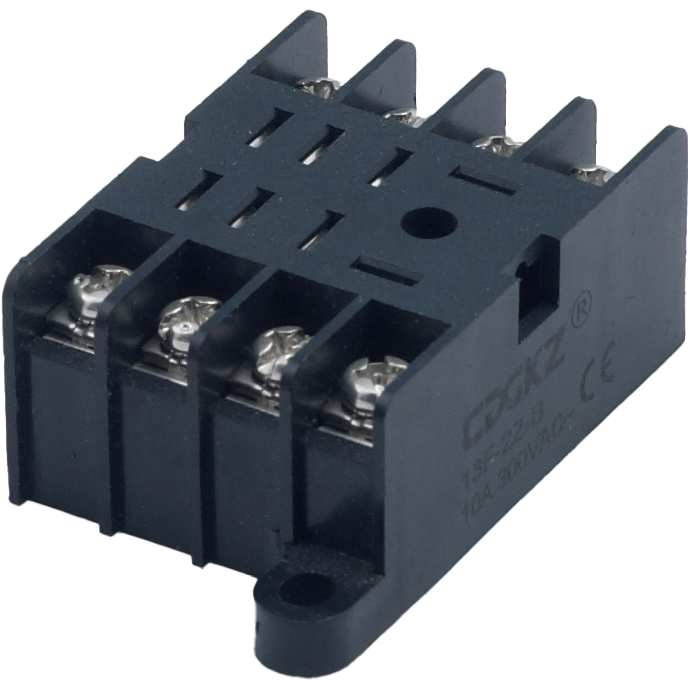

Product Details

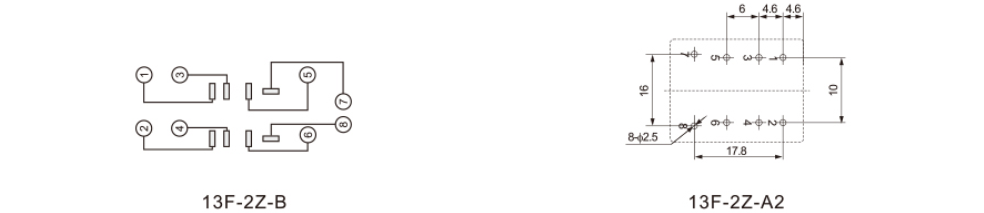

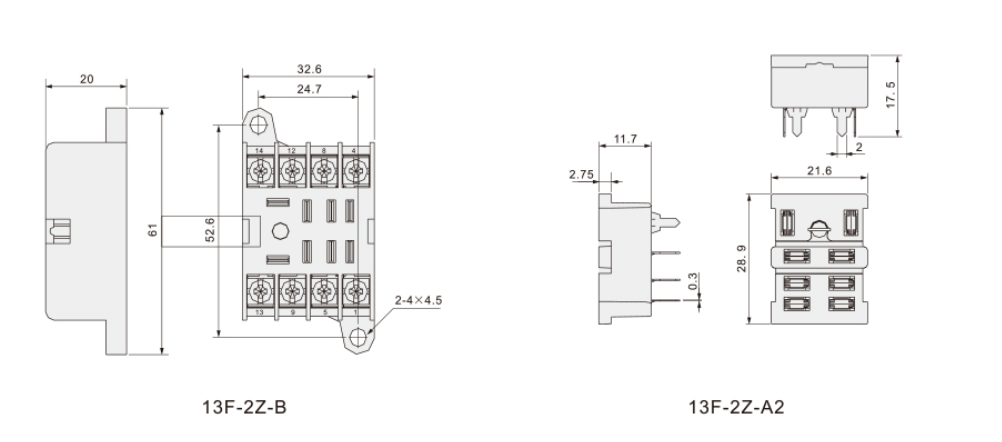

Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 13F-2Z-B socket delivers high current capacity, stable mechanical design, and robust environmental adaptability for demanding industrial applications.
Electrical Ratings
- Rated current up to 16A ensures high load capacity for industrial applications.
- Rated voltage 300V, suitable for standard control and power circuits.
- Dielectric strength 2000V/S provides reliable insulation and electrical safety.
Mechanical & Installation Features
- Compact design with a weight of 33g, facilitating easy panel integration.
- Precision contact structure ensures stable relay engagement and long service life.
- Optimized pin layout for secure relay insertion and replacement.
Environmental Conditions
- Operates within -40℃ to +85℃, enabling performance in harsh environments.
- Resistant to thermal fluctuations, ensuring long-term stability.
- Designed to function reliably under industrial vibration and humidity conditions.
Physical Characteristics
- Lightweight body at 33g supports flexible installation in limited spaces.
- Rigid housing ensures mechanical strength and durability.
- Compatible with multiple relay brands: Siemens, Schneider, TE, Eaton, Weidmuller.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.

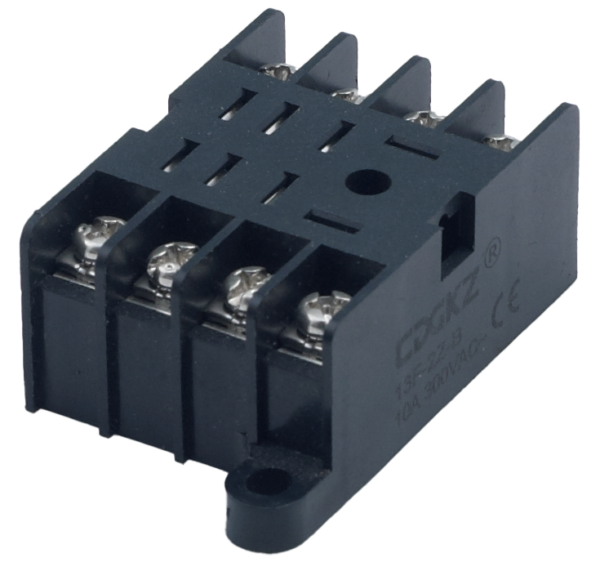

Structural & Functional Advantages
13F-2Z-B
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration

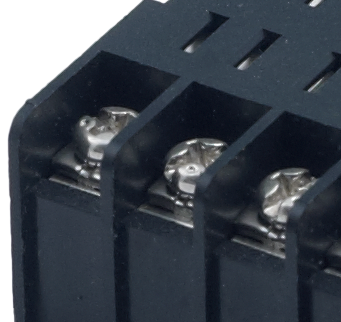

Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts

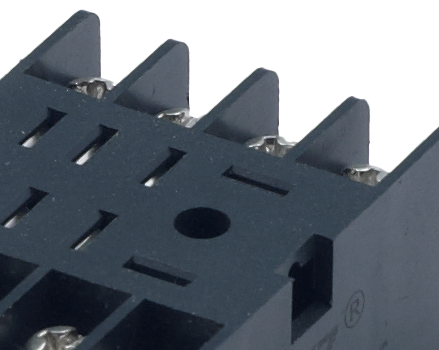

Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated electrical performance of the 13F-2Z-B socket?
The 13F-2Z-B socket offers a rated current of 16A and a rated voltage of 300V, ensuring stable operation for industrial control systems. Its dielectric strength of 2000V/S guarantees reliable insulation and safety under demanding conditions.
2.What are the operating temperature conditions for this socket?
The socket is designed to function reliably within an ambient temperature range of -40℃ to +85℃, making it suitable for both harsh low-temperature environments and high-temperature industrial facilities.
3. What is the mechanical and weight specification of this product?
The 13F-2Z-B weighs only 33g, providing a balance of durability and compactness. This lightweight design helps reduce panel load without compromising robustness.
4.What safety and durability features does the 13F-2Z-B include?
With its 2000V/S dielectric strength and high-quality insulating materials, the socket minimizes electrical leakage and arc risks. This ensures long-term operational stability and reduces maintenance frequency.
5.What are the typical application scenarios for this socket?
The 13F-2Z-B socket is widely used in industrial automation, power distribution systems, machine control panels, and OEM relay modules where high current (16A) and reliable insulation are critical.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
