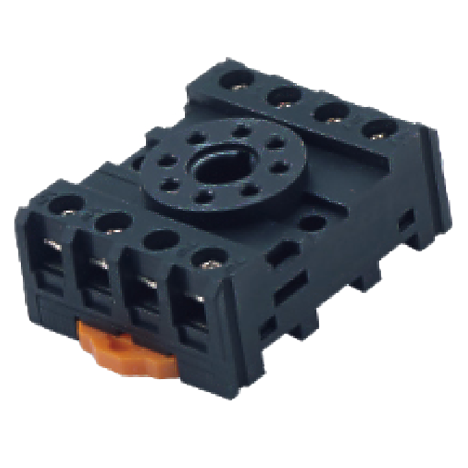

10A 300V 8PIN Relay socket 10F-2Z-C2 Manufacturer of the Industrial Control Products CDGKZ
| Product model | 10F-2Z-C2 |
| Rated current | 10A |
| Rated voltage | 300V |
| Dielectric strength | 2000V/S |
| Screw torque | 1.0Nm |
| External connection wire | 20-14/0.5-2.5AWG/mm² |
| Ambient temperature | -40℃-+65℃ |
| Weight | 34G |
| Adapter relay | Siemens, Schneider, TE, Eaton, Weidmuller |
Product Details
Outline dimensions/Mount dimensions(mm)
Performance Parameters
Key Technical Features:
The 10F-2Z-C2 relay socket delivers reliable electrical insulation, robust mechanical fastening, and stable performance under diverse industrial conditions.
Electrical Ratings
- Rated current of 10A ensures stable load-carrying capacity for industrial control circuits.
- Rated voltage of 300V supports medium-voltage applications across automation systems.
- Dielectric strength of 2000V/S guarantees excellent insulation and safe operation.
Mechanical & Installation Features
- Screw torque of 1.0Nm provides secure terminal tightening and vibration resistance.
- Supports external connection wire 20-14 AWG / 0.5-2.5mm² for versatile wiring compatibility.
- Compact and lightweight 34g design facilitates easy panel and DIN-rail integration.
Environmental Conditions
- Operates reliably in ambient temperature from -40℃ to +65℃, suitable for harsh environments.
- Resistant to temperature fluctuations and industrial humidity exposure.
Physical Characteristics
- Sturdy housing ensures mechanical durability during continuous switching.
- Optimized contact layout provides stable relay insertion and extraction performance.
The product perfectly fits Siemens, Schneider, TE, Eaton, and Weidmuller relays, while offering superior socket quality beyond leading international brands.
Structural & Functional Advantages
10F-2Z-C2
Mounting Options
Compatible with both DIN rail and panel mounting, simplifying cabinet integration
Screw Terminal Design
Ensures firm wiring and mechanical reliability, reducing risk of loose contacts
Black Flame-Retardant Base
Enhances durability and visibility in control panels
Hook-Compatible Design
Supports optional hook (e.g., 10F-G) for enhanced locking and anti-fall capability
Broad relay compatibility
Siemens, Schneider, TE, Eaton, Weidmuller
Application Scenario
Industrial Control Systems
PLCs, motor controls, and automation equipment
Electrical Panels
Distribution boards and power supply units
Home Appliances
Wiring for household devices and equipment
FAQ
1.What is the rated current and voltage of the 10F-2Z-C2 relay socket?
The 10F-2Z-C2 socket is designed for a rated current of 10A and a rated voltage of 300V, ensuring stable operation in industrial control systems.
2.How strong is the dielectric withstand capability of this socket?
The socket offers a dielectric strength of 2000V/S, which provides excellent insulation protection and reduces the risk of electrical breakdown.
3. What wire sizes are supported for external connections?
It supports 20–14 AWG / 0.5–2.5mm² wires, making it compatible with standard industrial cabling and suitable for flexible installation requirements.
4.What are the environmental operating conditions for this relay socket?
The socket is engineered for -40℃ to +65℃ ambient temperature, allowing reliable performance in both low-temperature and moderately high-temperature environments.
5. What is the recommended screw torque for secure installation?
The socket requires a screw torque of 1.0 Nm, ensuring firm wire connections that resist loosening due to vibration or long-term use.
6.Can this product be used with Siemens, Schneider, TE, Eaton, and Weidmuller relays?
Yes, the 14F-2Z-C5 relay socket is fully compatible with Siemens, Schneider, TE, Eaton, and Weidmuller relays. Moreover, its contact reliability and housing durability surpass many international brands, ensuring superior long-term performance.
