Relay Socket Testing Methods and Quality Control
Introduction: Manufacturers use comprehensive relay socket testing methods to ensure each socket is reliable and safe in critical applications. Relay socket quality testing covers everything from electrical performance and insulation safety to mechanical durability and environmental resilience. These tests verify that each relay socket (or relay base) can handle its rated voltage, carry the specified current without overheating, resist heat and vibration, and meet all industry compliance standards for safety and performance.
TL;DR:
– Electrical Performance & Safety: Relay socket electrical performance testing checks contact resistance, voltage testing (dielectric withstand), current testing (load carrying capacity) and insulation testing to ensure sockets handle power safely[1].
– Mechanical Durability: Relay socket durability testing involves repeated plug–unplug cycles, while impact testing (shock/vibration) verifies the socket’s physical robustness and that relays remain securely seated under stress[2].
– Environmental Resilience: Relay socket environmental testing exposes sockets to extreme temperatures, humidity, and corrosive conditions (e.g. salt spray) to ensure reliable operation in harsh environments[3]. Heat resistance testing confirms materials withstand high operating temperatures without degrading.
– Quality Control & Compliance: Rigorous manufacturing quality control and certification testing (e.g. UL, IEC standards) are performed to maintain low failure rates. Relay socket reliability testing (life cycle and failure rate tests) ensures the product meets safety regulations and long-term performance criteria[4][5].
Comprehensive Relay Socket Quality Testing Methods
To guarantee performance and safety, manufacturers implement a range of relay socket testing methods during design and production. These methods collectively serve as a thorough relay socket quality testing regimen addressing different failure modes:
- Electrical tests: Verify that each socket meets its electrical specifications (voltage, current, resistance) without issues.
- Mechanical tests: Evaluate the socket’s physical endurance and construction integrity under repeated use and force.
- Environmental tests: Simulate harsh conditions like heat, cold, moisture, and corrosion to ensure reliability in real-world environments.
- Safety & compliance tests: Confirm that the socket adheres to industry safety standards and regulations, often through third-party certification.
Leading manufacturers often provide comprehensive test reports for their relay sockets, including product life cycle tests, environmental simulations, and electrical performance data[6]. By reviewing these results, engineers can confirm that a socket’s design, materials, and construction have been validated across all important criteria. No single test is sufficient on its own – only a combination of electrical, mechanical, and environmental testing gives a complete picture of socket quality and reliability.
Key Takeaways:
– A multi-faceted testing program (electrical, mechanical, environmental) is essential to fully evaluate relay socket quality.
– Comprehensive testing methods help identify weaknesses early, preventing failures in the field.
– Relying on certified test data and reports ensures the socket meets required performance and safety benchmarks.
(Learn more: Selecting a reliable relay socket for your application)
Electrical Performance and Safety Testing
Relay socket performance testing begins with verifying all electrical parameters. This includes measuring contact resistance, conducting relay socket voltage testing, and performing insulation checks for safety. High-quality sockets are expected to have very low contact resistance and high insulation resistance, which keeps voltage drop minimal and prevents leakage or shorting[1]. For example, a new socket’s contact resistance is measured to ensure it stays within the milliohm range, and insulation resistance between isolated terminals is tested in the megaohms – indicating no current will leak across circuits.
A critical safety check is the dielectric withstand (hi-pot) test, where a high voltage (well above normal operating level) is applied between the socket’s contacts and ground. This voltage testing stresses the insulation to ensure there is no breakdown or arcing. The socket must withstand the specified test voltage (e.g. 1000–2000 V AC for one minute) without any dielectric failure, confirming that in surges or transient over-voltages the socket’s insulation will protect against electrical shock or short-circuits.
Relay socket current testing is performed to verify the socket can carry its rated current safely. In relay socket load testing, the socket is energized with the maximum rated current (or sometimes a slight overload) for an extended period. Engineers monitor the temperature rise in the socket’s contacts and terminals. This test ensures the socket’s insulating materials can handle the heat generated by current without risk of fire[7].
Beyond static measurements, relay socket functional testing may be done by plugging an actual relay into the socket to confirm proper operation. This ensures that each electrical terminal in the socket correctly connects to the relay coil or contact, and that the relay activates as intended when powered. It’s a simple but important check of the socket’s functionality in use.
Safety testing also extends to material flammability and insulation spacing. For instance, the socket’s plastic body might be tested per UL 94 flammability standards (aiming for a V-0 rating, indicating it self-extinguishes quickly if ignited). Meanwhile, European standards emphasize adequate creepage and clearance distances in the socket design to prevent electrical shock accidents[8]. By adhering to both approaches, manufacturers ensure that relay socket safety testing covers fire hazards and shock prevention from the materials and design standpoint.
Key Takeaways:
– Electrical tests confirm low contact resistance and high insulation resistance, ensuring efficient and safe current flow[1].
– Voltage withstand tests (hi-pot) verify that the socket’s insulation can handle transient high voltages without breakdown.
– Current load testing checks that the socket can carry rated currents without overheating or compromising safety[7].
(Learn more: Understanding relay socket voltage and current ratings)
Mechanical Durability and Impact Testing

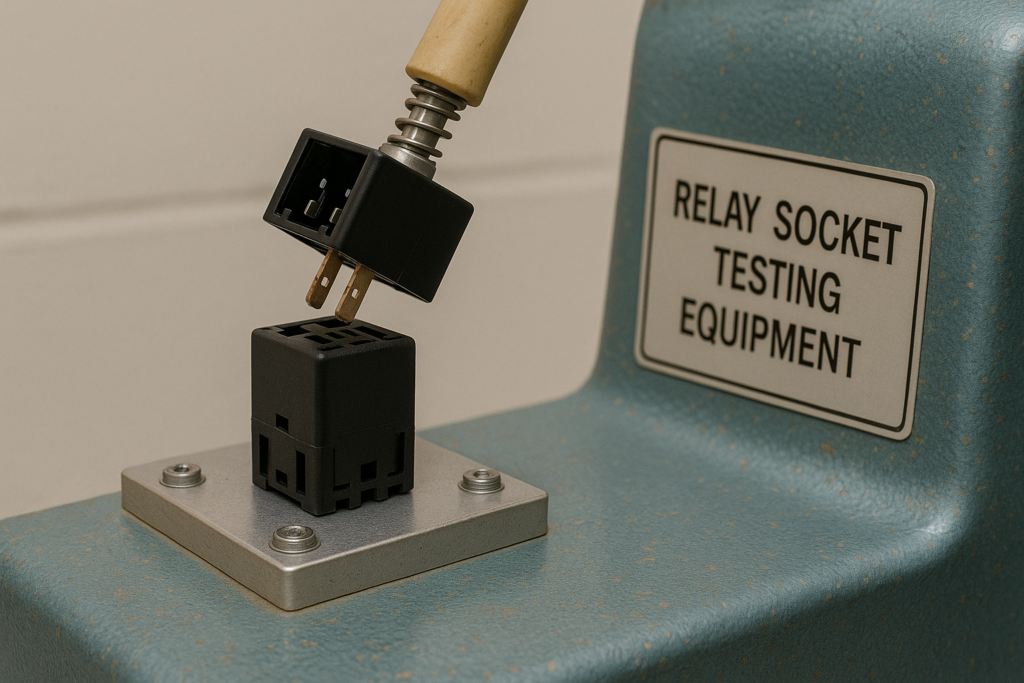

Mechanical integrity is vital for relay sockets that might face frequent usage or harsh handling. Relay socket durability testing focuses on wear-and-tear from normal operation. One common method is a cycling test, where a relay (or a test plug) is repeatedly inserted and removed from the socket. This might be done hundreds or even thousands of times using an automated rig. The purpose is to ensure the socket’s contacts and clamping mechanisms do not deform, crack, or lose tension after many mating cycles. High-strength, wear-resistant materials are used in quality sockets to prevent damage during frequent plugging and unplugging[2]. By verifying through tests that a socket can endure, say, 50 or 100 insertion/removal cycles without performance loss, manufacturers demonstrate a sufficient service life for maintenance and replacement schedules.
Impact testing subjects the socket to physical shocks and vibrations that might occur in its operating environment. For instance, in automotive or industrial applications, relay sockets may experience constant engine vibration, random bumps, or even accidental drops. In vibration tests, sockets (with relays inserted) are mounted on a shaker table and exposed to sustained vibration across various frequencies. The goal is to confirm that no connections become intermittent and that the relay remains securely seated. Shock tests involve sudden jolts (e.g. several g’s of acceleration) to simulate impacts. Afterward, the sockets are inspected for any cracks in the housing or dislodged contacts. A well-designed socket should show no damage or loosening after these tests, preserving full functionality.
By performing these mechanical and durability tests, manufacturers ensure the socket will not mechanically fail under normal use or moderate accidents. The tests verify that the socket’s design resists long-term wear and does not suffer loosening or deformation during use[2]. This is especially important in critical systems – a relay can only do its job if it stays firmly in its socket regardless of vibration or handling.
Key Takeaways:
– Durability cycle tests simulate repeated relay insertions to ensure sockets can withstand years of use without wear or loss of tension.
– Shock and vibration testing verifies that sockets tolerate physical impacts and motion without cracking or letting the relay become loose.
– Robust materials and design prevent mechanical failures (no broken parts or deformation), even under frequent use and stress[2].
Environmental and Reliability Testing
Relay sockets must perform reliably not just in ideal conditions, but also under extreme environments and over long time spans. Relay socket environmental testing involves exposing the socket to various climate conditions to ensure its materials and electrical performance hold up. One key aspect is heat resistance testing: sockets are baked at high ambient temperatures (for example, +85°C or higher, depending on the rating) for an extended period and then examined for signs of material softening, warping, or loss of electrical insulation. Similarly, cold testing at sub-zero temperatures (e.g. -40°C) confirms that plastic parts do not become brittle and that the socket can still function (contacts spring back properly) in freezing conditions.
Humidity and water resistance are tested through damp heat. In a damp heat test (per standards like IEC 60068-2-78), the socket might be kept at ~40°C and 93% relative humidity for several days, then checked for any drop in insulation resistance or corrosion. Corrosion resistance is often evaluated via a salt fog exposure. For instance, IEC 60068-2-11 (salt mist test) continuously sprays a saline solution inside a chamber at 35°C to accelerate corrosion[3]. After 24 or 48 hours of salt exposure, the relay socket is inspected for rust on metal contacts or any corrosive damage to terminals. This ensures that in coastal or road environments (where salt spray or salty air is present), the socket’s metal parts will not corrode to the point of failure. Many high-quality automotive relay sockets are specified to pass 24-hour or 48-hour salt spray tests without significant rust.
Relay socket reliability testing goes hand-in-hand with environmental testing, aiming to assess the long-term performance and failure rate of the socket. Often this involves accelerated life testing – subjecting the socket to elevated stresses (electrical load, temperature, vibration) for prolonged periods to induce potential failures faster. For example, a life test might switch a relay on and off in the socket tens of thousands of times while powering its coil, to simulate years of operation. In fact, some safety standards like UL 508 mandate endurance tests on electromechanical components (such as relays and their sockets) with thousands of operation cycles under load to verify reliability[9]. By conducting such relay socket failure rate testing, manufacturers can estimate the socket’s mean time between failure (MTBF) or the probability of failure over a given number of operations. A low failure rate (and graceful degradation, if any) is the mark of a truly reliable socket.
Crucially, multiple stresses are often combined to reveal any design weaknesses. TE Connectivity notes that repeated thermal cycling (heating up and cooling down) can significantly impact the long-term stability of contact resistance, potentially leading to overheating or fire hazards if not accounted for[5]. Therefore, thorough testing under real-world conditions – such as powering a socket at high current in a hot environment for an extended time – is strongly recommended to catch any such issues early. The data from reliability and failure rate testing feeds back into design improvements, ensuring that by the time the product is finalized, it can handle the worst-case conditions of its intended environment with a high degree of confidence.
Key Takeaways:
– Thermal tests (high heat and deep cold) confirm the socket’s materials and performance remain stable across the full operating temperature range.
– Humidity and corrosion tests (salt spray, damp heat) ensure long-term reliability by checking for rust, insulation degradation, or other environmental damage[3].
– Reliability life-cycle testing (accelerated aging, extended operation cycles) validates that failure rates are extremely low, so the socket will perform safely over many years[5].
Manufacturing Quality Control and Compliance Testing
Even after design validation, maintaining quality in mass production is critical. Relay socket manufacturing quality control involves systematic inspections and tests during and after the production process to ensure every unit meets the specifications. This typically starts with incoming inspection of materials – for example, verifying that the plastic resin and metal contacts used match required grades (flame-retardant plastics, conductive alloys, etc.). During assembly, in-process checks may be done (such as ensuring crimps or soldered connections for terminals are secure). Once a relay socket is fully assembled, manufacturers often perform several end-of-line quality checks.
Quality control steps at the factory include thorough visual and dimensional inspections to catch any physical defects or assembly issues, electrical functional testing on units (using automated equipment to verify correct connectivity and insulation), and routine sampling tests on each production batch. Sample sockets may undergo full performance verification or accelerated stress tests as an audit. If any sample fails a criterion, the entire batch is flagged for investigation before shipping.
All these quality control measures aim to catch any manufacturing variances and keep the defect rate extremely low. By tracking metrics like first-pass yield and doing root-cause analysis on any failures, the production process can be continuously improved.
In addition to in-house checks, relay socket certification testing is performed to meet external standards. Manufacturers typically submit their socket designs to independent laboratories for formal certification. During this relay socket compliance testing, the lab verifies that the product meets all criteria of the relevant standard (e.g. insulation distances, temperature rise limits, flammability ratings). Manufacturers often seek UL recognition or listing for their sockets (under standards such as UL 508 for industrial control equipment) to verify they meet U.S. safety requirements. Similarly, sockets usually comply with IEC standards (for example, IEC 61984 for connector safety) and must satisfy the insulation and creepage rules defined in those standards[4]. Meeting IEC/EN criteria can allow the product to bear a CE mark for use in Europe. Automotive relay sockets might even have to pass specialized automotive industry tests or qualifications.
Compliance is not only about performance – it also covers material and environmental regulations. For instance, manufacturers ensure their products conform to RoHS (Restriction of Hazardous Substances) by using lead-free, compliant materials, and maintain documentation for REACH and other directives. Through rigorous quality control and compliance testing, companies achieve consistency and trust in their relay sockets. The combination of in-factory testing and third-party certification gives end users confidence that each socket will perform as expected and meet all required safety standards. It also helps maintain a very low failure rate in the field – any issues that do arise can be traced and corrected via the quality management process, further improving the product over time.
Key Takeaways:
– Manufacturing QC entails inspecting and testing each batch of sockets (visual checks, electrical tests) to ensure they meet design specifications and have no defects.
– Certification testing by independent labs (UL, IEC, etc.) validates that the relay socket meets official safety and performance standards, allowing it to be used in regulated applications[4].
– Ongoing compliance with regulations (e.g. RoHS material standards) and analysis of any failures feed back into production, keeping defect rates low over time.
Conclusion
Thorough testing and quality control of relay sockets translates into real-world reliability and safety. By investing in comprehensive performance, durability, and compliance testing, you ensure that your end equipment runs smoothly and avoids costly failures. If you’re looking for high-performance relay sockets that meet strict quality standards, or need guidance on selecting the right socket, contact our team for expert assistance. We offer certified, reliable relay socket solutions and are happy to answer questions or provide a quote to meet your needs.
